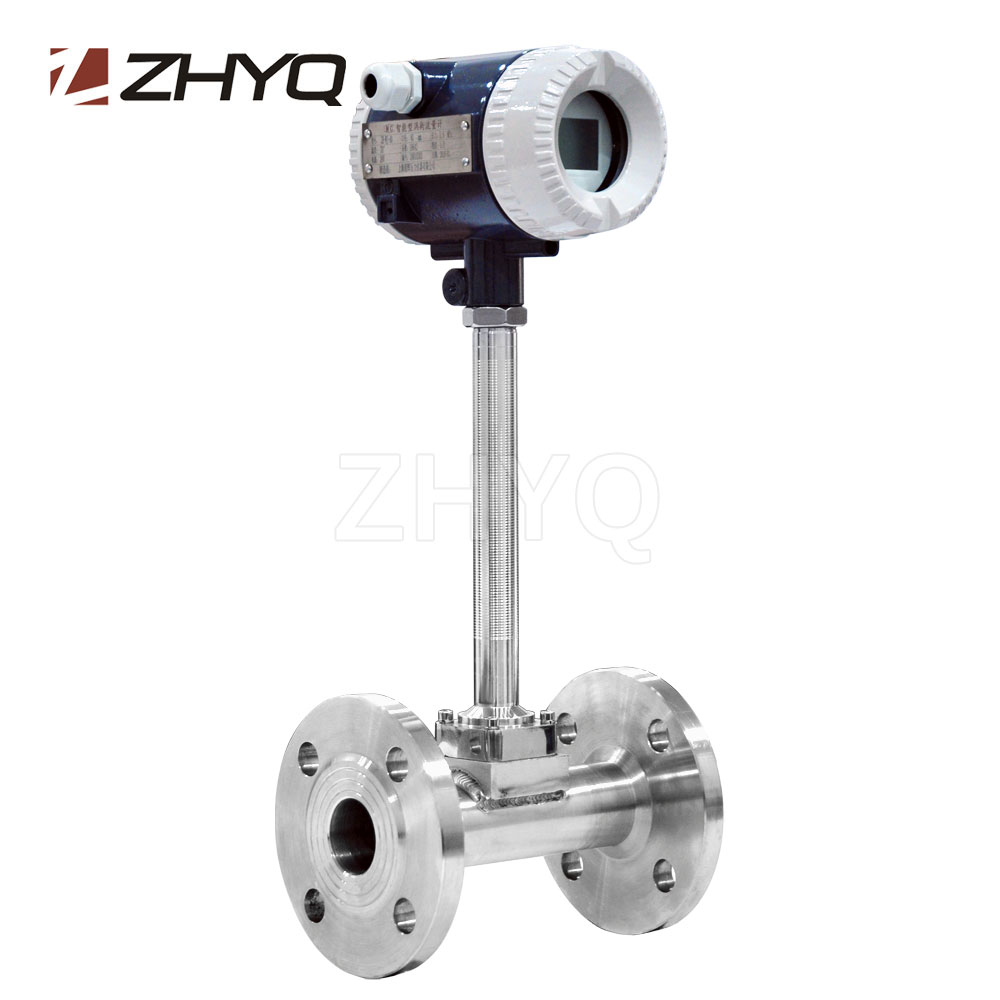

Vortex Flowmeter
Model:PT124B-503
Description:
ZHYQ’s PT124B-503 vortex flowmeter is a kind of advanced speed flowmeter and has a wide range of applications. Flow metering, measurement and control of liquids, vapors and most gases.
Send inquiry Download PDF- With a sophisticated low-power LCD display, the local display shows instantaneous flow, cumulative flow, frequency, pressure, temperature, density, current, percentage etc .
- Probe used four piezoelectric ceramic technologies to effectively eliminate the influence of external vibration on the measurement
- No moving parts, no wear, no mechanical maintenance and long service life
- The probe and signal converter are universally interchangeable
- Split type signal converter can be used, the cable can be up to 10 meters long.
- Output 4-20mA current signal / pulse signal, or Modbus RS485 signal
- Two types of intrinsic safety explosion-proof: Exia II CT6Ga; flameproof: Exd II CT6Gb
- With HART–Protocol communication protocol, Modbus RS485 interface.
- Widely used in Paper, sugar, various beverages
- Water supply and drainage, environmental protection,
- Water conservancy engineering, steel, petroleum, mining,
- Pharmaceutical, heating, water supply,
- Hot steam, saturated steam, compressed air.
| Description | Parameters | |
|
Nominal diameter(mm) |
Claming connection DN15～DN300 Flange connection DN15～DN500 | |
| Measuring medium | Gas, liquid, steam | |
|
Pressure（MPa） |
1.6、2.5、4.0、6.3
Others are optional |
|
|
Medium temp. |
Standard temp.（-40 ～ +150）℃ medium temp.（-40 ～ +250）℃ high temp.（-40 ～ +350）℃ | |
|
Material |
SUS304 / SUS316/ SUS316L, others are optional | |
| Accuray | 1.0%FS | |
| Repeatability | ≤±0.33% | |
| Range ratio | 1：10 ～ 1：20 | |
|
converter |
Type | Intergrated type， split type, temp. & pressure compensation type |
| Power supply | 12VDC/24VDC, battery | |
| Display type | LCD display | |
| Telecommunication | HART , Modbus RS485 | |
| Signal output | Three wires， 4-20mA two wires | |
|
Ex-proof grade |
Intrinsically safe ex-proof Exia Ⅱ CT6FGa flameproof Exd Ⅱ CT6Gb | |
| Protection | IP65,IP67,IP68 | |
| Electrical connection | M20×1.5,1/2NPT | |
|
Ambient condition |
Temp. | （-30 ～ +60）℃ |
| Humidity | 5% ～ 90% | |
| Air pressure | （86 ~～106）kPa | |
