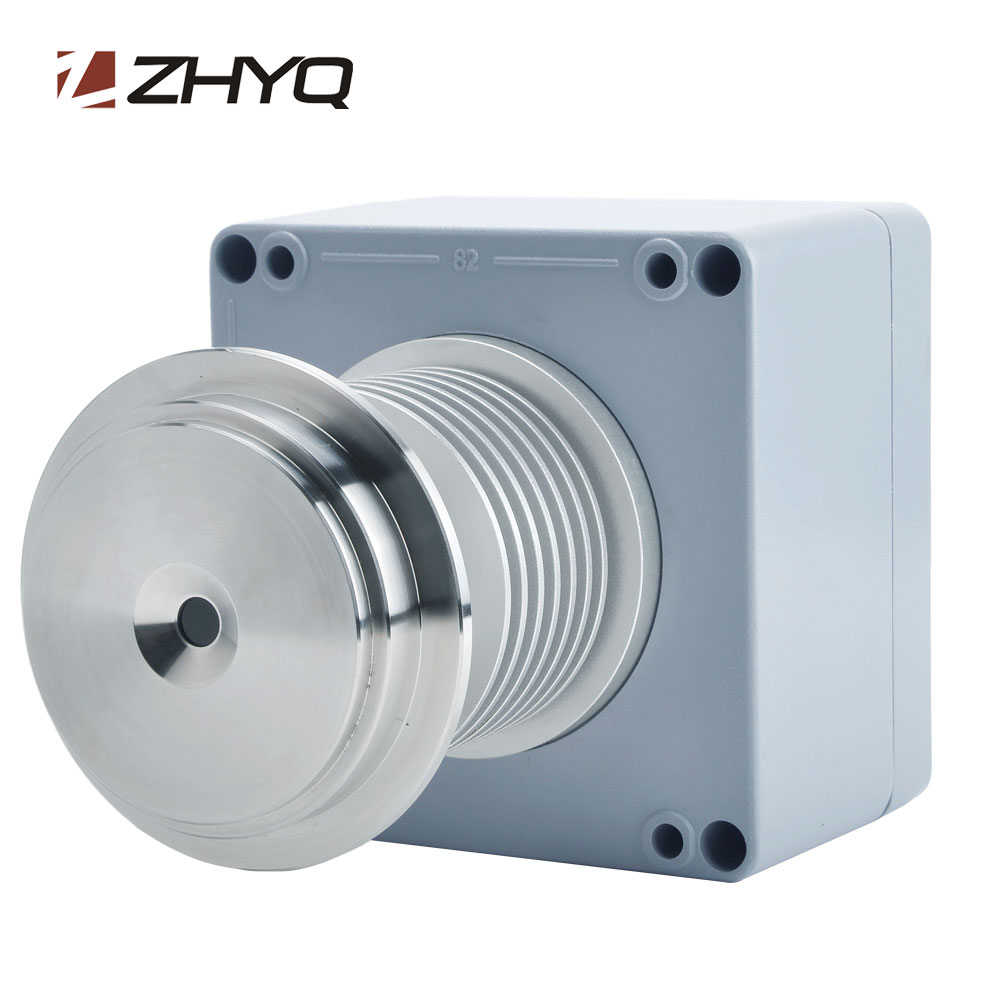

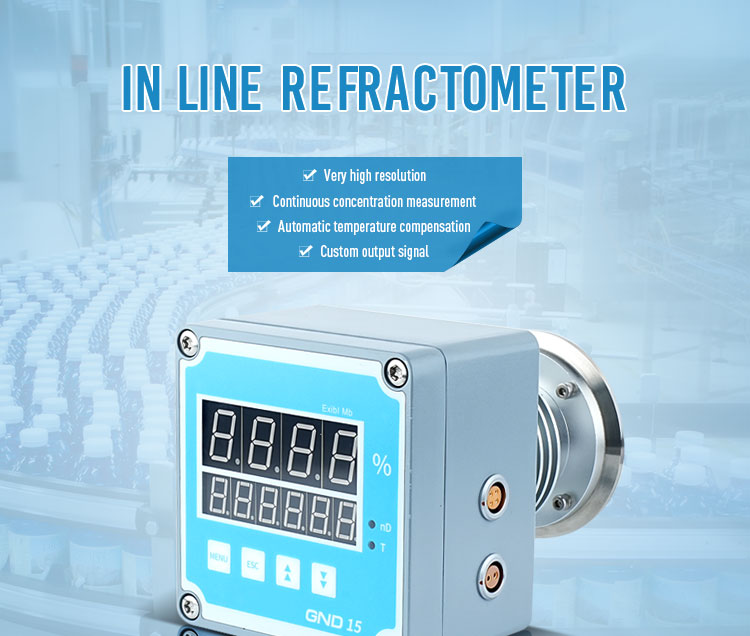

CZ-B In-line Refractometer (Room temperature application )
Model:CZ-B
Description:

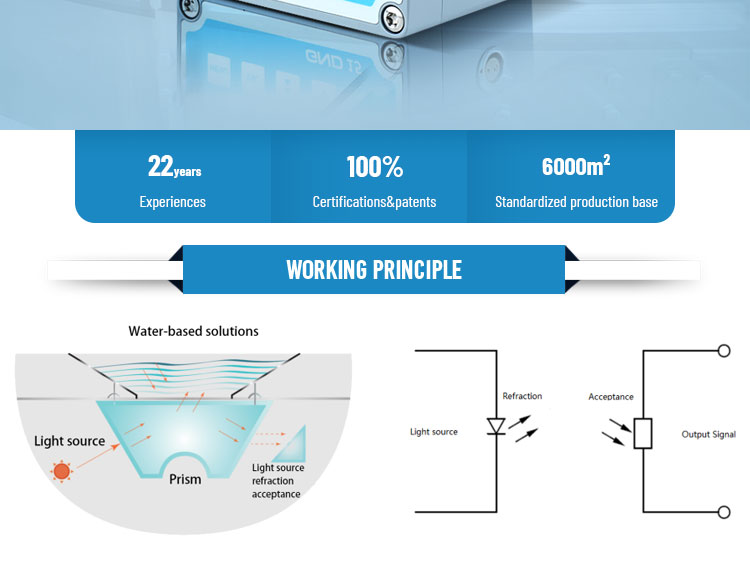

The In-line Brix-Monitor CZ-B is a refractometer that detects the Refractive Index of a sample and outputs , the Brix(%) value on the display , can also transmit measured data to external devices via 4 to 20mA or RS-232C. CZ-B series has the function of automatic temperature compensation according to the temperature of the tested medium , when the tested medium temperature changes , the Brix value ( soluble solids ) after temperature compensation is displays and the output changes accordingly .
Send inquiry Download PDF
1.Automatic temperature compensation
2.Lightweight , compact and easy to install on site .

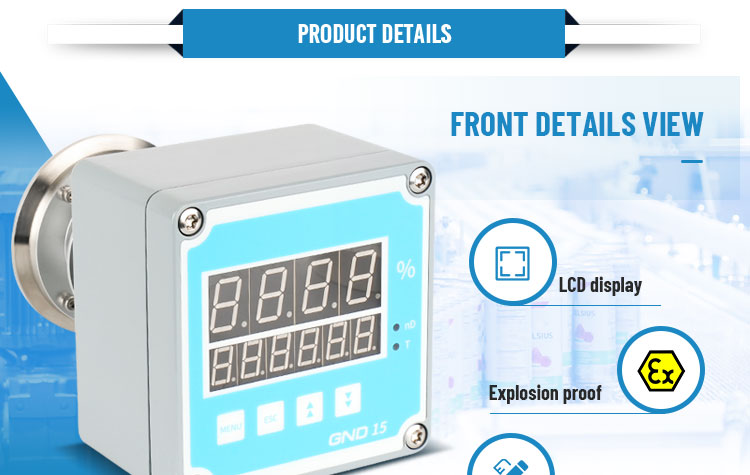

3.LED display ,
4.Easy to operate, easy to connect with other devices for automatic control
5.Inline real-time monitoring and control of liquid substance concentration in various industries
1.Cutting oil , mold release agent , quenching liquid , cleaning liquid , emulsion in the machining industry
2.Chemicals and allied , pulp & paper , tobacco , environmental protection
3.Biorefining , Metals and mining
4.Food industry , Dairy , Beverage industry , Fruit and effect processing ,
5.Starch sweetener , Sugar and sweeteners
6.Water-based solutions
| Model: | CZ-B |
| Measure Parameters: | Refractive index(nD), Brix (%), Temperature (° C) |
| Measure Range: | 0-15% , 0-33% , 0-53% , 93% |
| Resolution Ratio: | Brix: 0.01%, nD: 0.00001 |
| Measurement Accuracy: | Brix: ±0.1%, nD: ±0.0001, Brix: ±0.25%, nD: ±0.0025, Brix: ±0.5%, nD: ±0.0005, |
| Measurement Temperature: | 0-120℃(Automatic Temperature Compensation) |
| Operating Current: | ≤200mA |

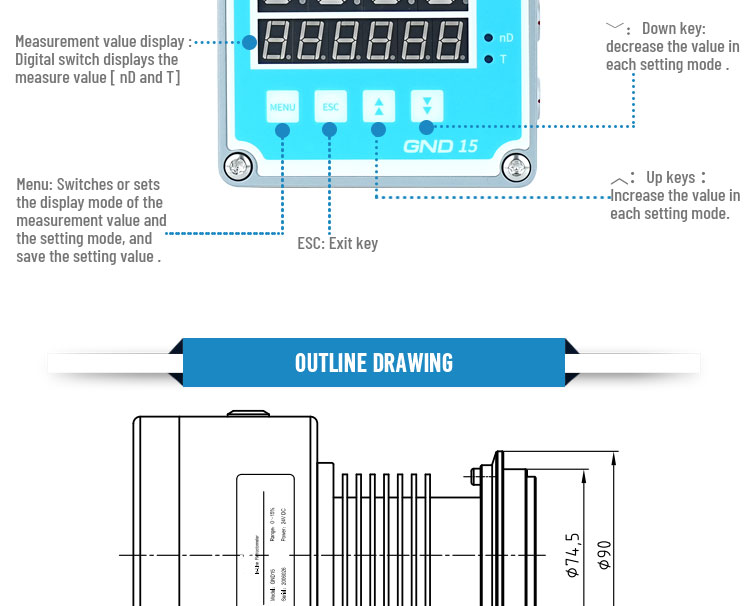

| Display Menu: | Refractive index(nD) , Brix(%), Temperature (° C) |

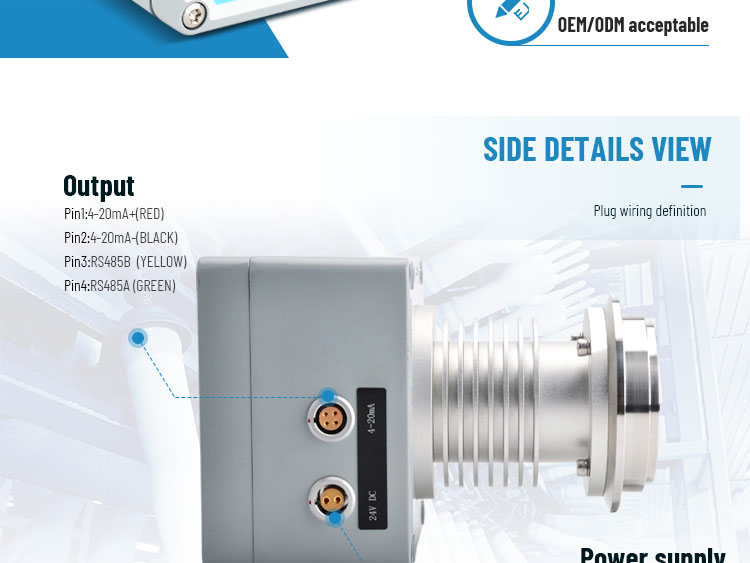

| Output: | 4-20mA , RS485 optional |
| Power: | 24V DC |

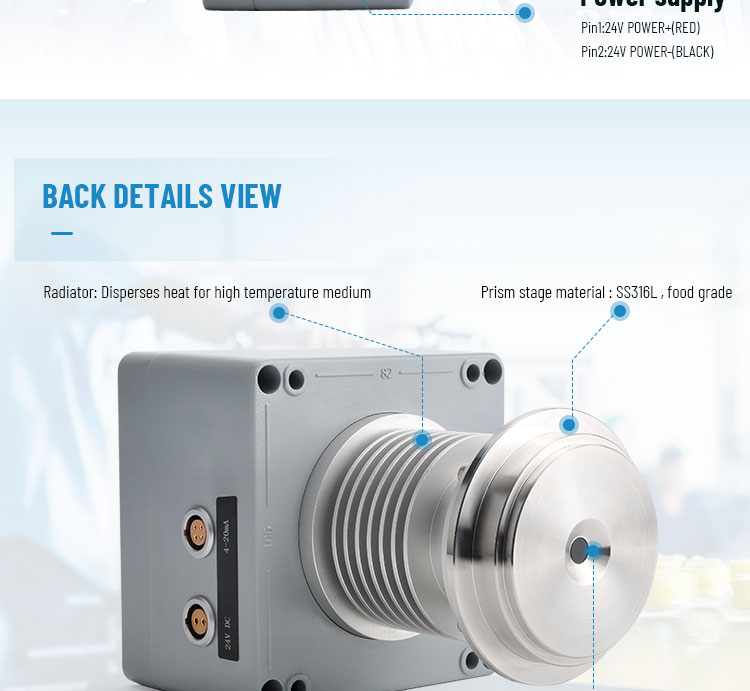

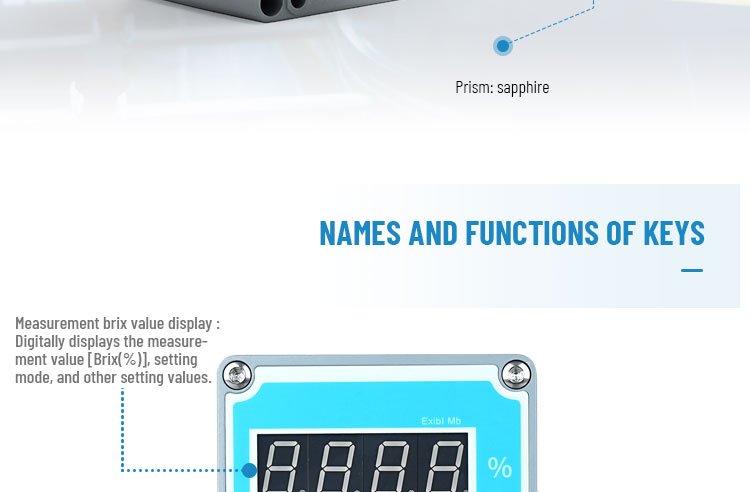

| Wetted Parts Material: | Prism: sapphire, Prism stage: SS304 , SS316L (can be customized) |
| Optical Source: | LED(the wave length approximate to D line) |
| Max Pressure: | 1MPa |
| Environment Temperature: | 0-40℃ |
| Protection Grade: | IP67 |

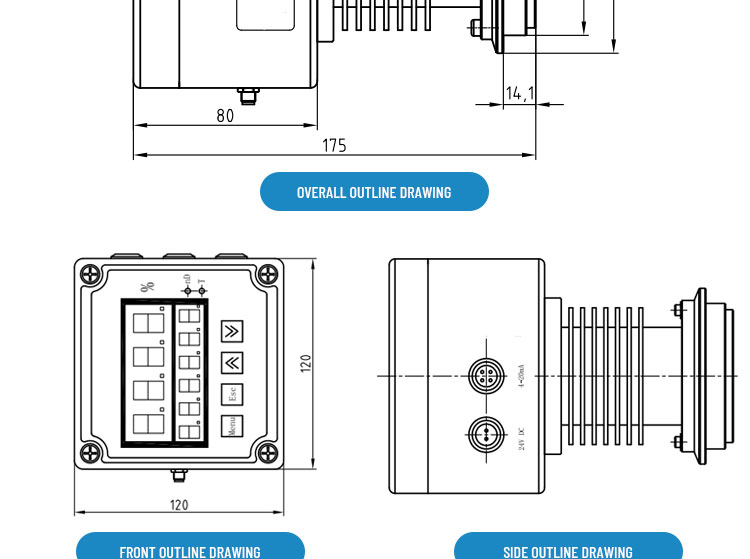

| Instrument Size: | 175mm*120mm*80mm |
| Process Connection: | 3” tri-clamp , other size customized |
| High and Low Limit Settings: | Buttons can be set |
| Recorder Output Cable: | 2M ,3M ,5M,10M optional |
| Temperature Sensor: | Thin film platinum sensor |
