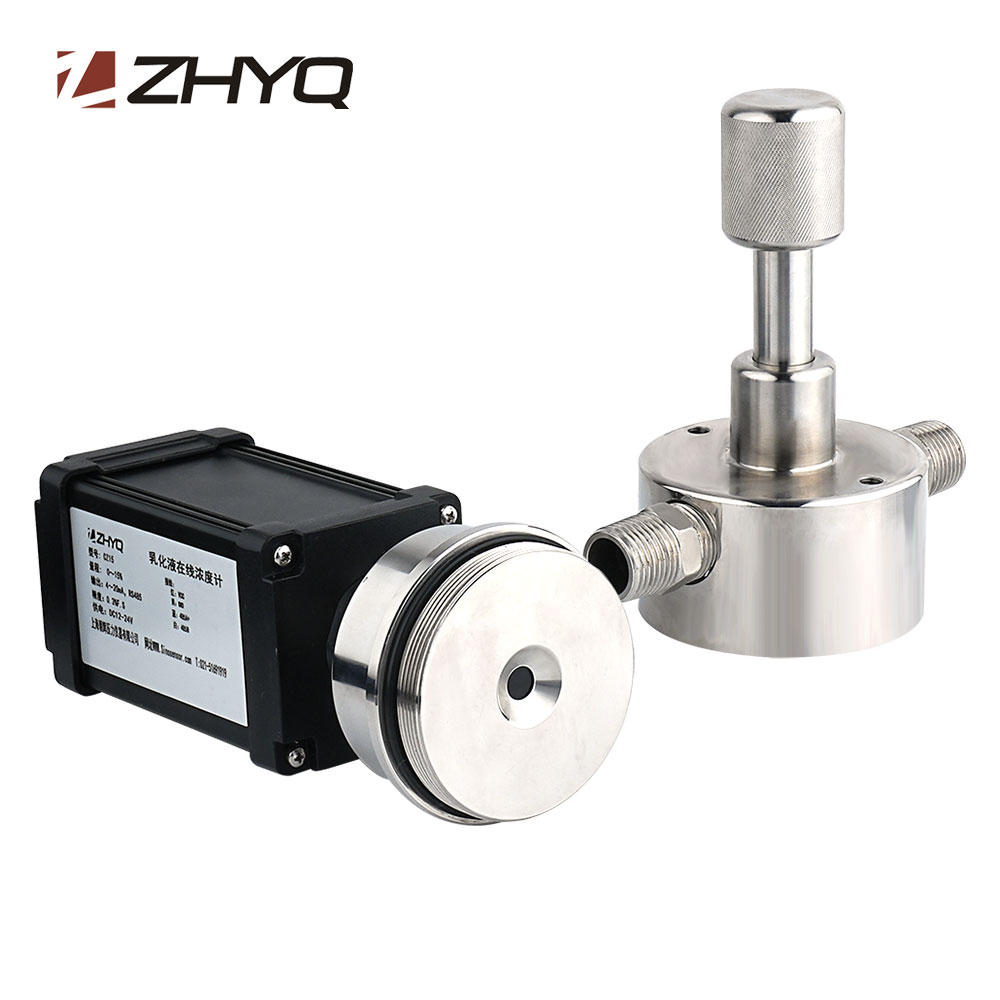

Compact Inline Refractometer(Without Display)
Model:CZ-S
Description:

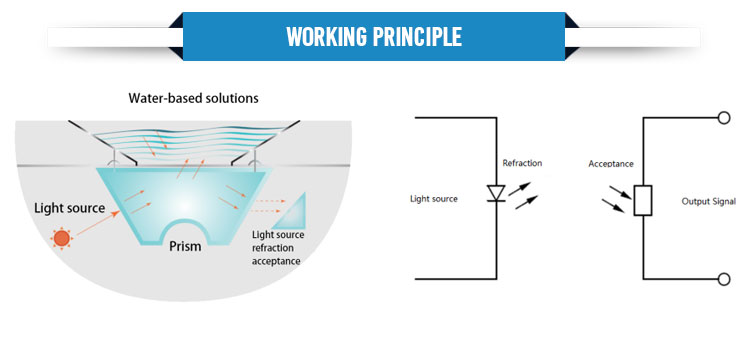

The In-line Brix-Monitor CZ-S is a refractometer that detects the Refractive Index of a sample and outputs the Brix(%) value , can also transmit measured data to external devices via 4-20mA or RS-485. CZ-S series has the function of automatic temperature compensation according to the temperature of the tested medium , when the tested medium temperature changes , the Brix value ( soluble solids ) after temperature compensation and the output changes accordingly .
Send inquiry Download PDF
1.Automatic temperature compensation
2.Lightweight , compact and easy to install on site .
3.Easy to operate, easy to connect with other devices for automatic control
4.Inline real-time monitoring and control of liquid substance concentration in various industries
1.Cutting oil , mold release agent , quenching liquid , cleaning liquid , emulsion in the machining industry
2.Chemicals and allied , pulp & paper , tobacco , environmental protection
3.Biorefining , Metals and mining
4.Food industry , Dairy , Beverage industry , Fruit and effect processing ,
5.Starch sweetener , Sugar and sweeteners
6.Water-based solutions
| Model: | CZ-S |
| Measure Parameters: | Refractive index(nD), Brix (%), Temperature (° C) |
| Measure Range: | 0-53% |
| Min Resolution Ratio: | Brix: 0.1% ( Range for 15% & 53% ) |
| Measurement Accuracy: | Brix:±0.3% (standard) |
| Measurement Temperature: | 0-85℃(Automatic Temperature Compensation) |
| Operating Current: | ≤200mA |
| Display Menu: | Refractive index(nD) , Brix(%), Temperature (° C) |

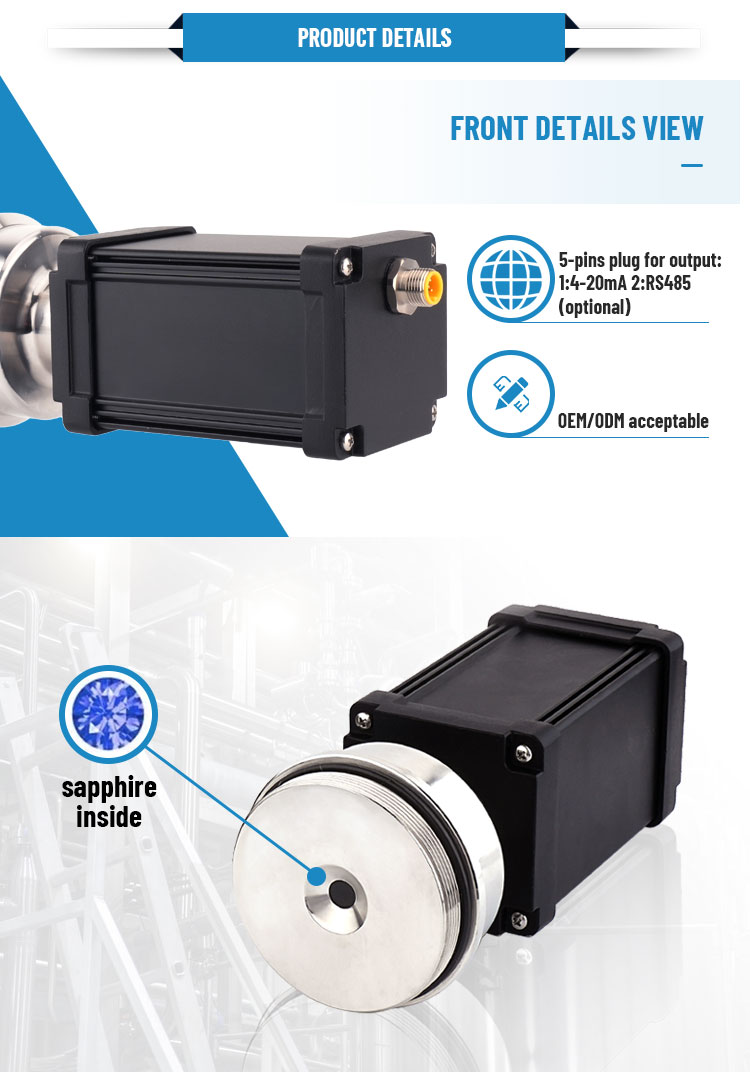

| Output: | 4-20mA , 4-20mA+ RS485 optional |
| Power: | 12-24V DC |
| Wetted Parts Material: | Prism: sapphire, Prism stage: ,SS316L (can be customized) |
| Max Pressure: | 1MPa |
| Environment Temperature: | 10-60℃ |
| Protection Grade: | IP65 |

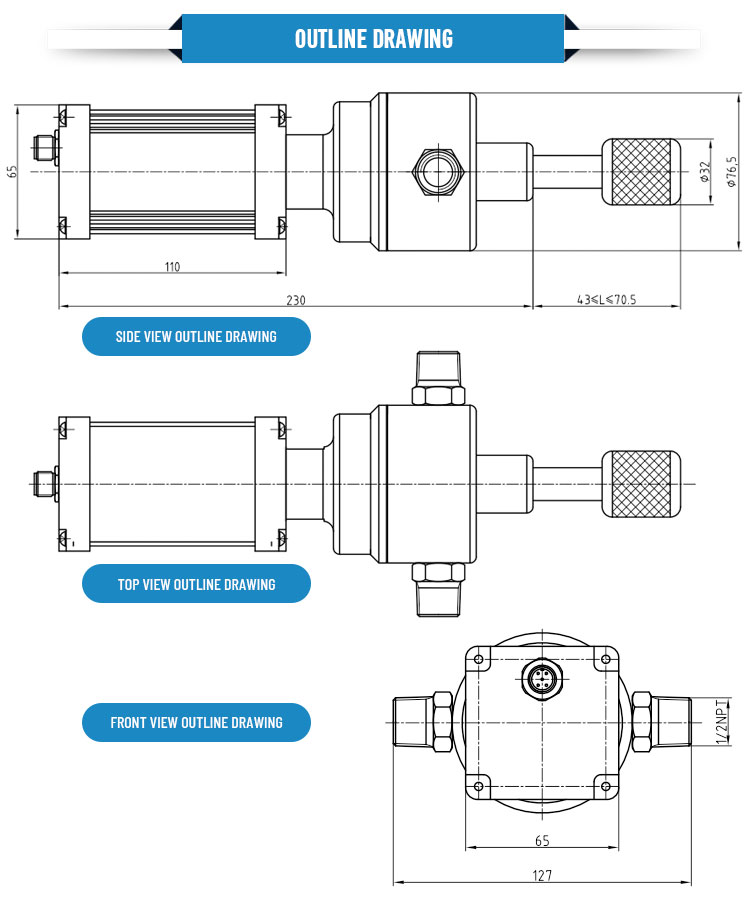

| Instrument Size: | 230mm*170mm*65mm |
| Process Connection: | 1/2NPT, other size supply free adaptor |
| Recorder Output Cable: | 2M ,3M ,5M,10M optional |
| Temperature Sensor: | Thin film platinum sensor |
