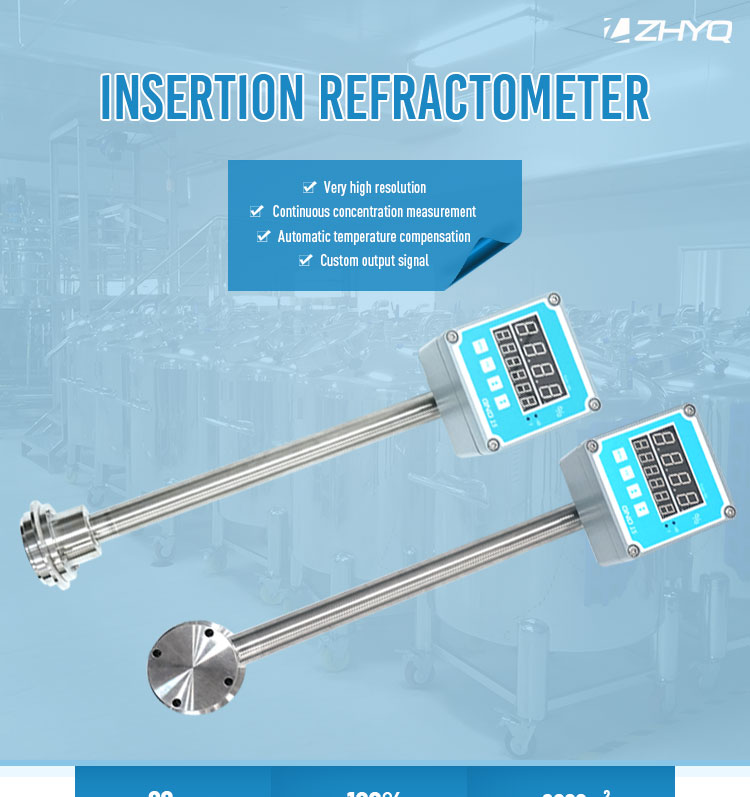

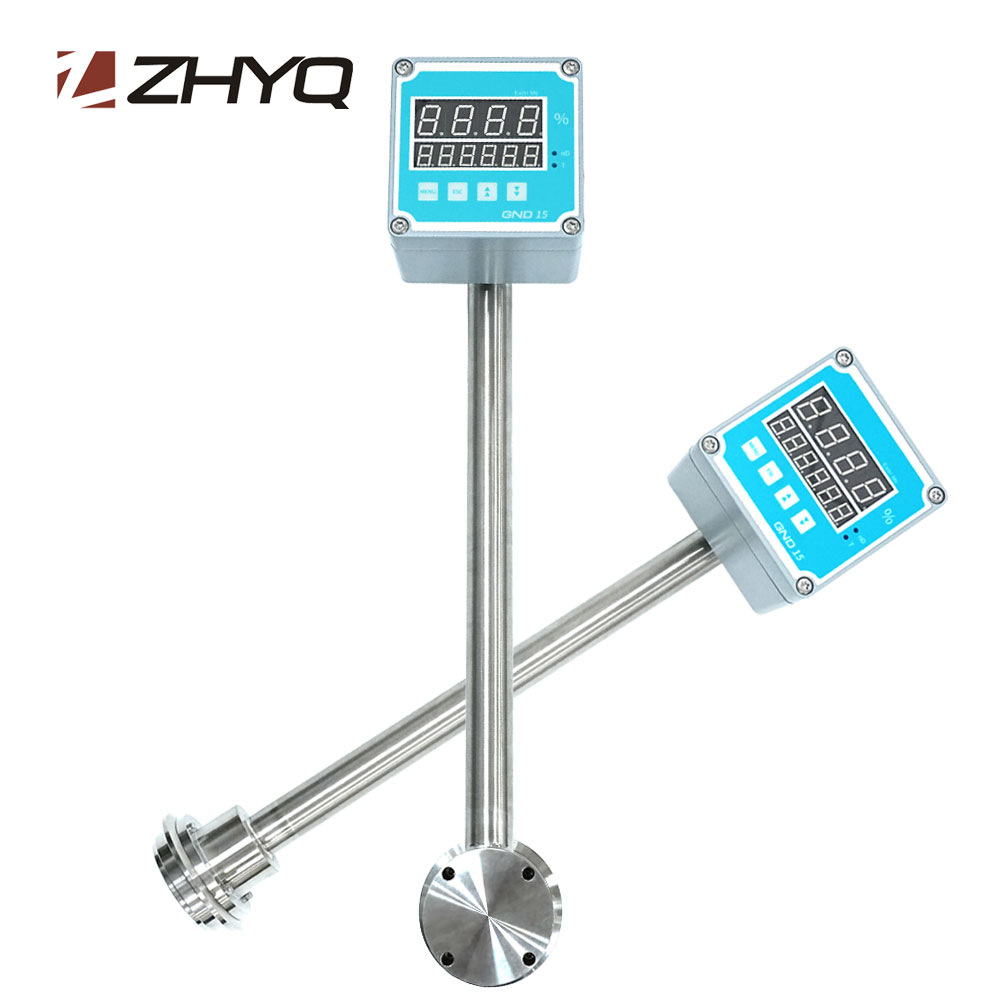

Long Rod Immersion Process Refractometer
Model:CZ-L
Description:

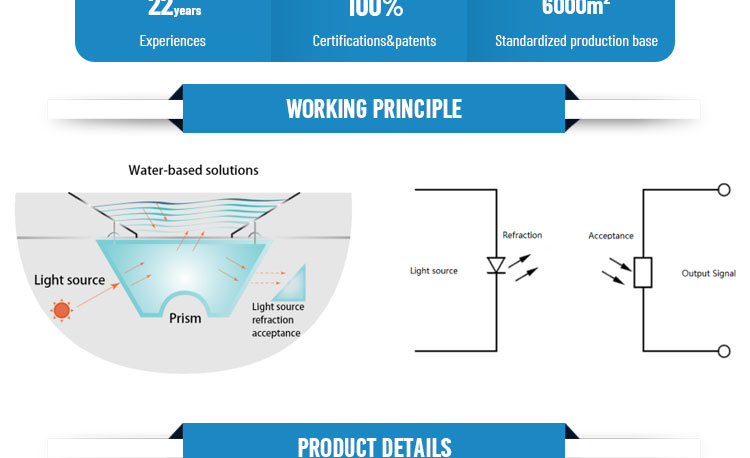

The Brix-Monitor CZ-L is a refractometer Designed for liquid storage tanks, that detects the Refractive Index of a sample and outputs the Brix(%) value on the display , can also transmit measured data to external devices via 4-20mA or RS-485. CZ-L series has the function of automatic temperature compensation according to the temperature of the tested medium , when the tested medium temperature changes , the Brix value ( soluble solids ) after temperature compensation is displays and the output changes accordingly .
Send inquiry
1.Automatic temperature compensation.

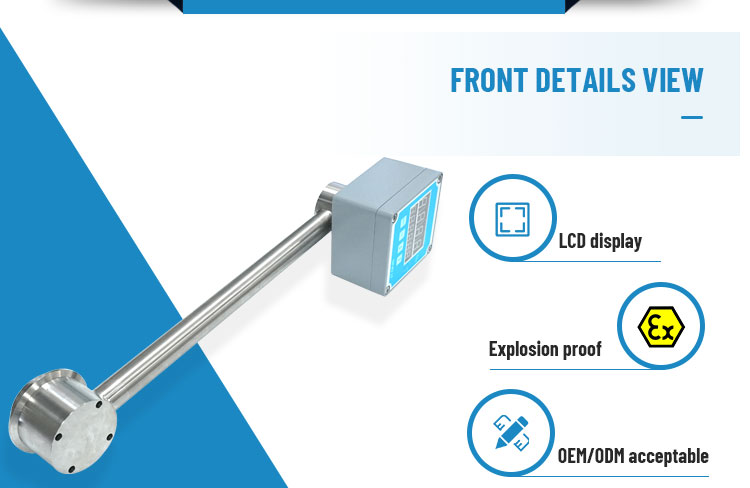

2.LED display.
3.Easy to operate, easy to connect with other devices for automatic control.

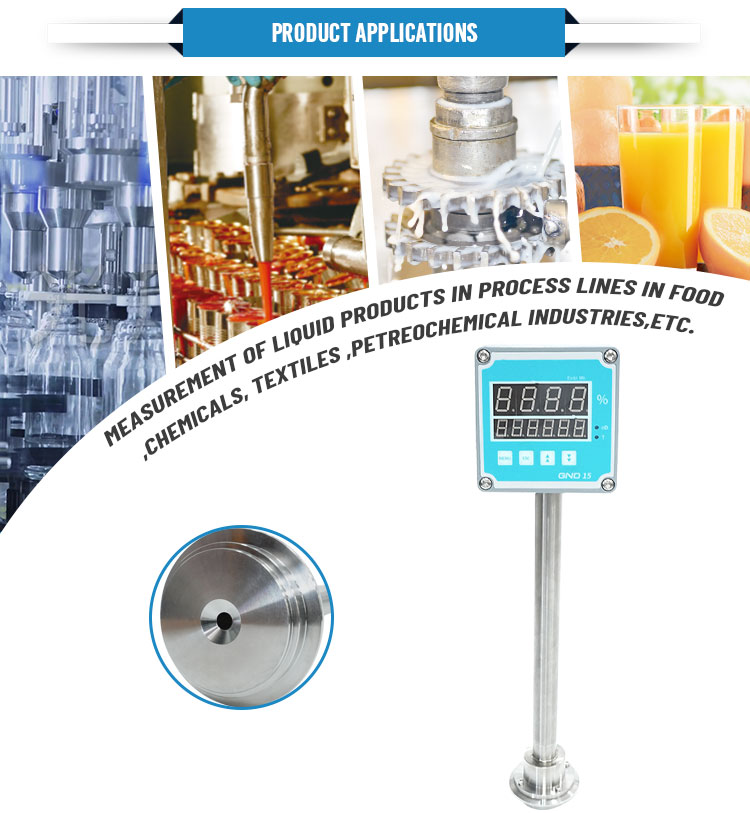

4.Inline real-time monitoring and control of liquid substance concentration in various industries.
1.Cutting oil , mold release agent , quenching liquid , cleaning liquid , emulsion in the machining industry
2.Chemicals and allied , pulp & paper , tobacco , environmental protection
3.Biorefining , Metals and mining
4.Food industry , Dairy , Beverage industry , Fruit and effect processing
5.Starch sweetener , Sugar and sweeteners
6.Water-based solutions

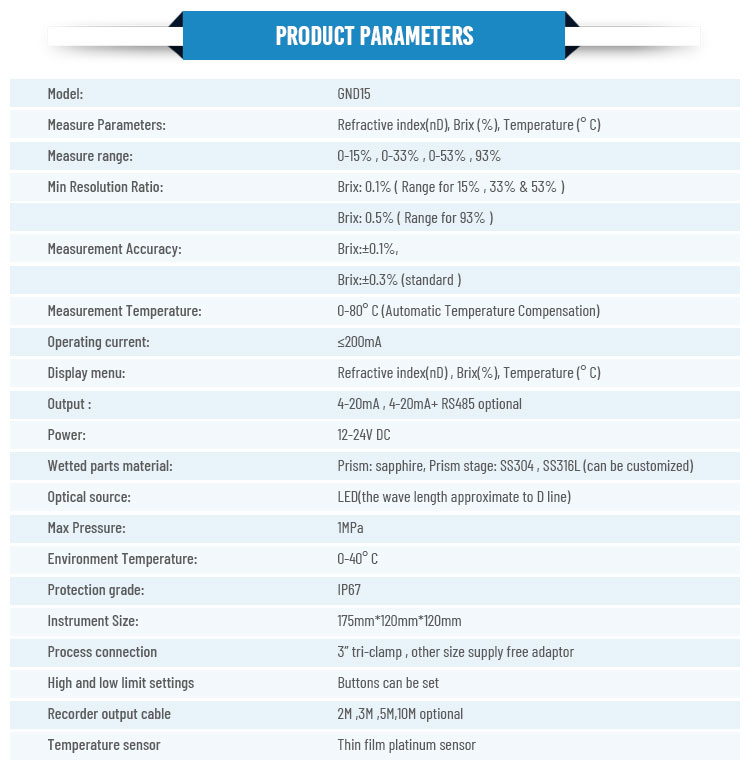

| Model: | CZ-L |
| Measure Parameters: | Refractive index(nD), Brix (%), Temperature (° C) |
| Measure Range: | 0-15% , 0-33% , 0-53% , 93% |
| Min Resolution Ratio: | Brix: 0.1% ( Range for 15% , 33% & 53% ) ,Brix: 0.5% ( Range for 93% ) |
| Measurement Accuracy: | Brix:±0.1%, rix:±0.3% (standard ) |
| Measurement Temperature: | 0-80℃(Automatic Temperature Compensation) |
| Operating Current: | ≤200mA |

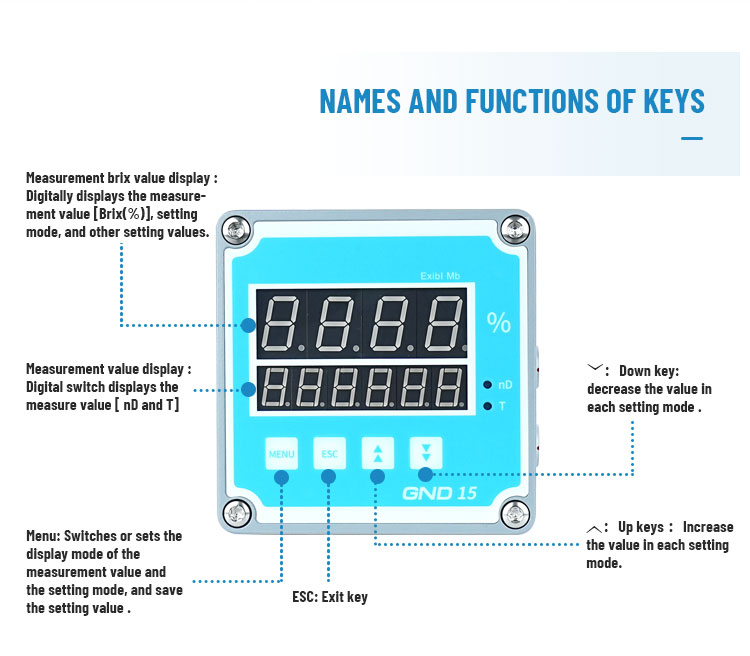

| Display Menu: | Refractive index(nD) , Brix(%), Temperature (° C) |

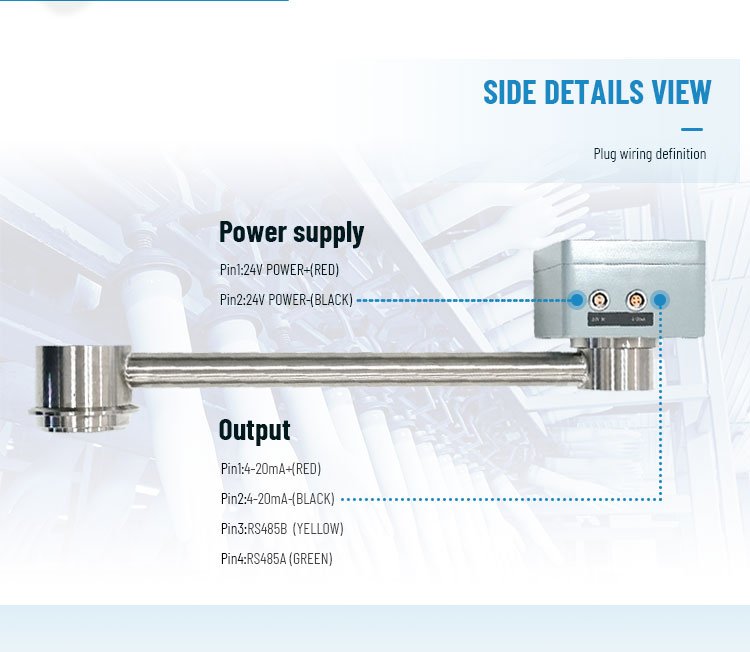

| Output: | 4-20mA , 4-20mA+ RS485 optional |
| Power: | 12-24V DC |

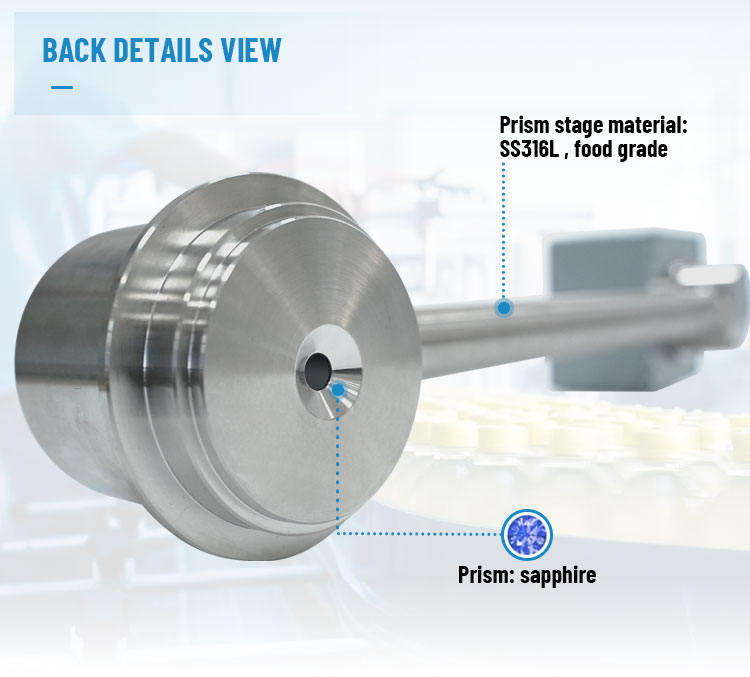

| Wetted Parts Material: | Prism: sapphire, Prism stage: SS304 , SS316L (can be customized) |
| Optical Source: | LED(the wave length approximate to D line) |
| Max Pressure: | 1MPa |
| Environment Temperature: | 0-120℃ |
| Protection Grade: | IP67 |
| Process Connection: | 3” tri-clamp , other size supply free adaptor |
| High and Low Limit Settings: | Buttons can be set |
| Recorder Output Cable: | 2M ,3M ,5M,10M optional |
| Temperature Sensor: | Thin film platinum sensor |
