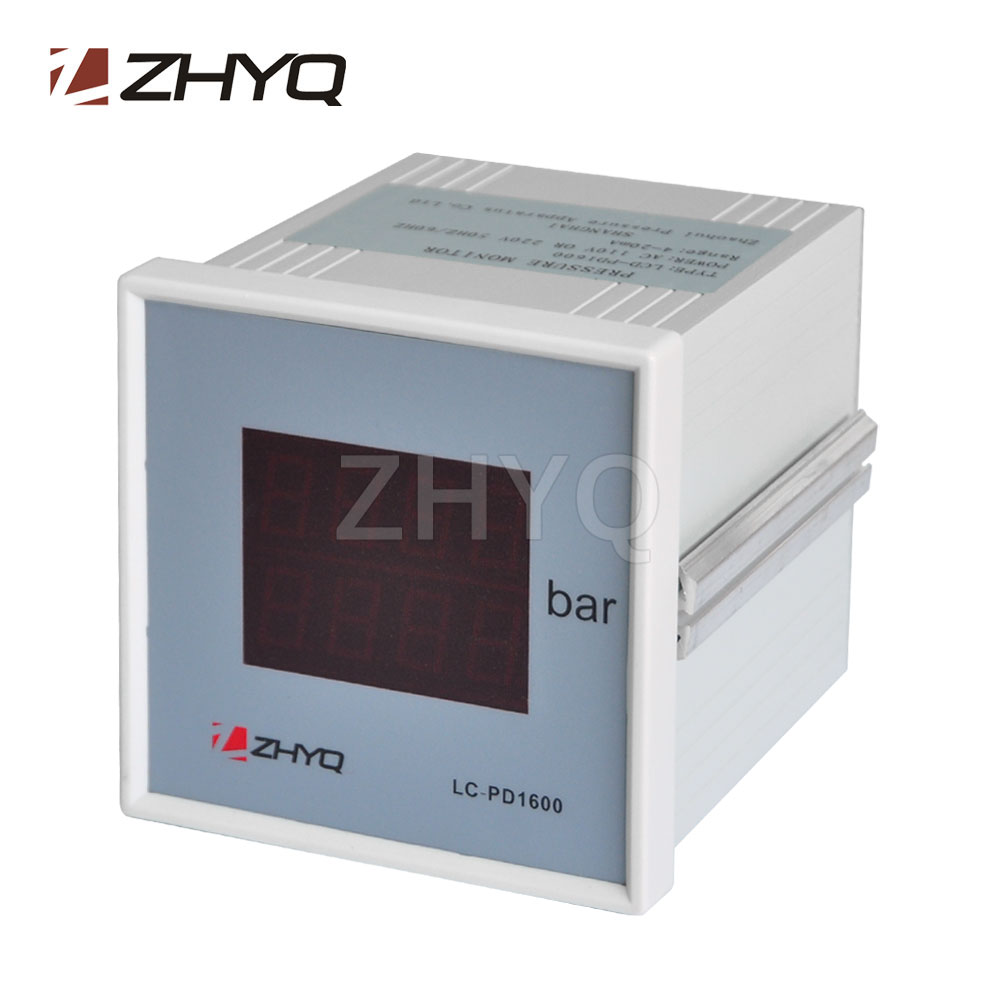

Intelligent digital pressure indicator
Model:PD1600
Description:
The intelligent digital pressure indicator designed with 96*96*105mm metal cover. Four-circuit pressure upstream and downstream programmable relay alarms.
Send inquiry- Good anti-Vibration
- Excellent stability
- LED Display
- High precision, Low power consumption
- Petroleum & Chemical
- Pharmaceutical & drinking water treatment
- Process pressure measurement and control for Food machinery and other automation equipment.
| Display | Dual 4-digit LED display |
| Precision | 0.5%FS±1 bit |
| Digital transducer power | 5V DC |
| Resolution | 00.01 |
| Range | 0001-9999Mpa (Radix point changeable) |
| Use temperature & humidity | 0-55% ≤80% RH |
| Power supply | AC220V±10% 50Hz-60Hz |
| Output control | Voltage and signal Linear Relation between the span output signals |
| Auxiliary output | Four-circuit pressure upstream and downstream programmable relay alarms, with RS485 serial communication. |
| Dimension size | 96×96×105mm |
| Panel cutout: | 92×92mm |
