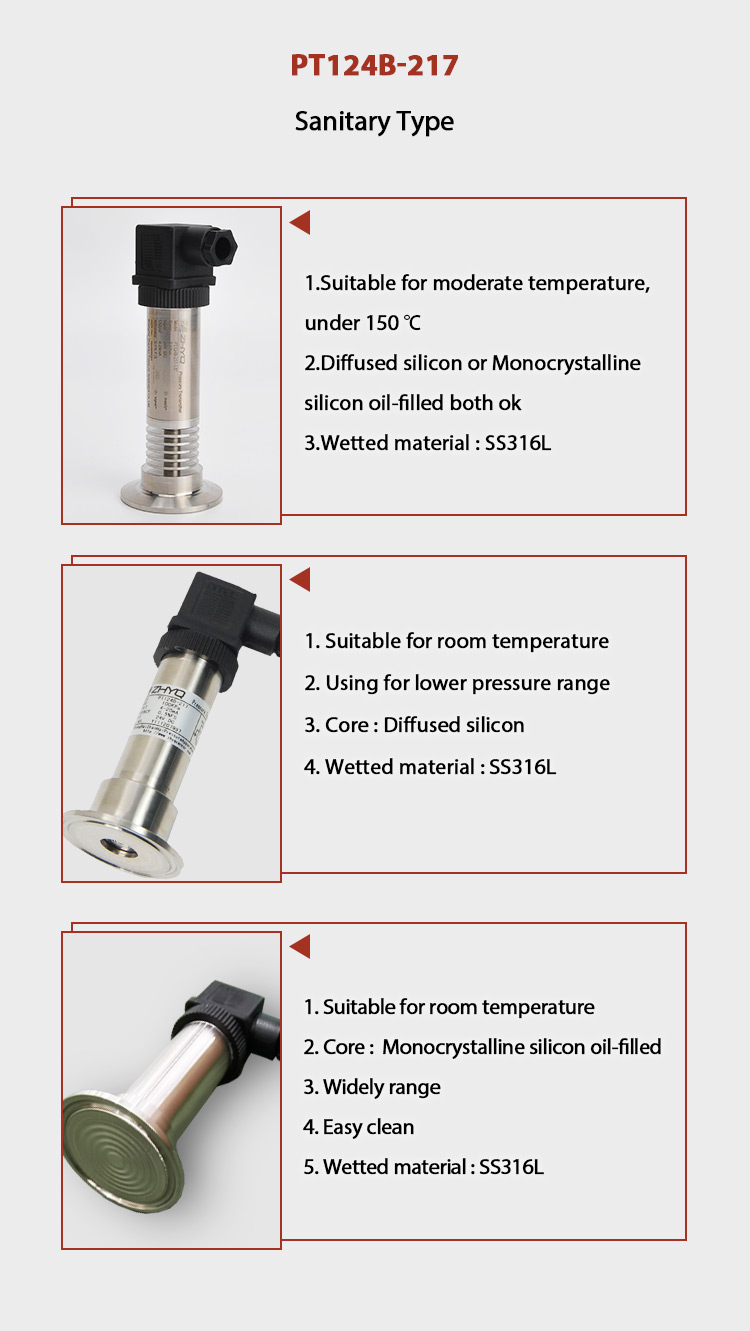

Clamp mounting pressure transmitter
Model:PT124B-217
Description:
PT124B-217 Series clamp pressure transmitter, it adopts firm material with special treatment, it is suitable for the low pressure measurement occasion. This product design with compact construct, corrosive-resistant, shock-resistant, it solves the problems during the measurement that the pressure port is easily blocked, it can be interchangeable with the similar world standard products.
Send inquiry Download PDF
- Pressure Range:-1…0…100bar
- Various signal output for industrial standard
- Wide pressure range
- High accuracy, high stability
- compact dimension design with high-standard quality
- This item suitable for polyurethane device, papermaking, paint, medical pharmacy, food & Beverage.
| Pressure range | -1~0~1bar; 0~10KPa~100MPa |
| Over load | 150%FS |
| Burst pressure | 300%FS |
| Output | 4-20mA, 1-5V/0-5V, 0-10V |
| Power supply | 12~36VDC |
| Response time | <5ms |
| Combine error | 0.25%FS; 0.5% FSO (Including Linearity, Repeatability & Hysteresis) |
| Repeatability | ≤ +/- 0.2%FSO |
| Long term stability | ≤ +/-0.2%FS/year |
| Pressure connection | 1.0 ″ , 1.5 ″ |
| Operating temperature | -20 ℃ ～ 80 ℃ |
| Temperature compensation | 0℃ ～ 60℃ |

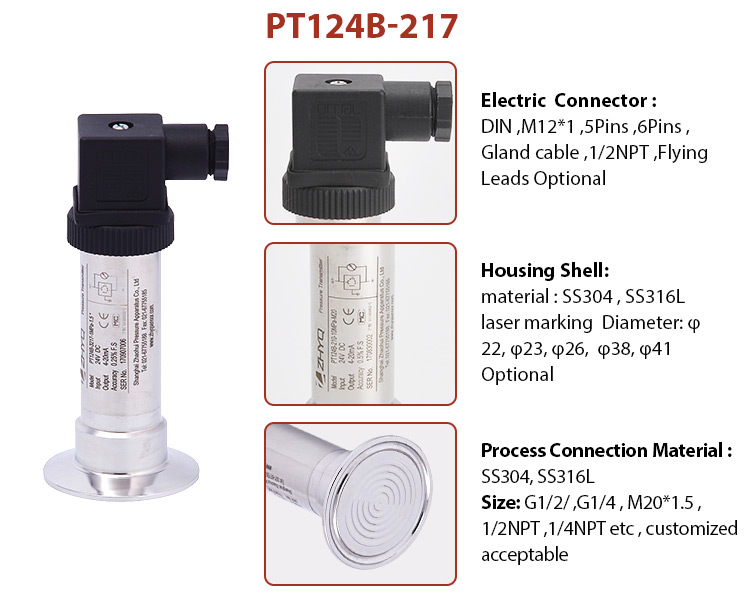

| Electrical connector | Bendix connector,Hirschman DIN4365 and Gland lead |
