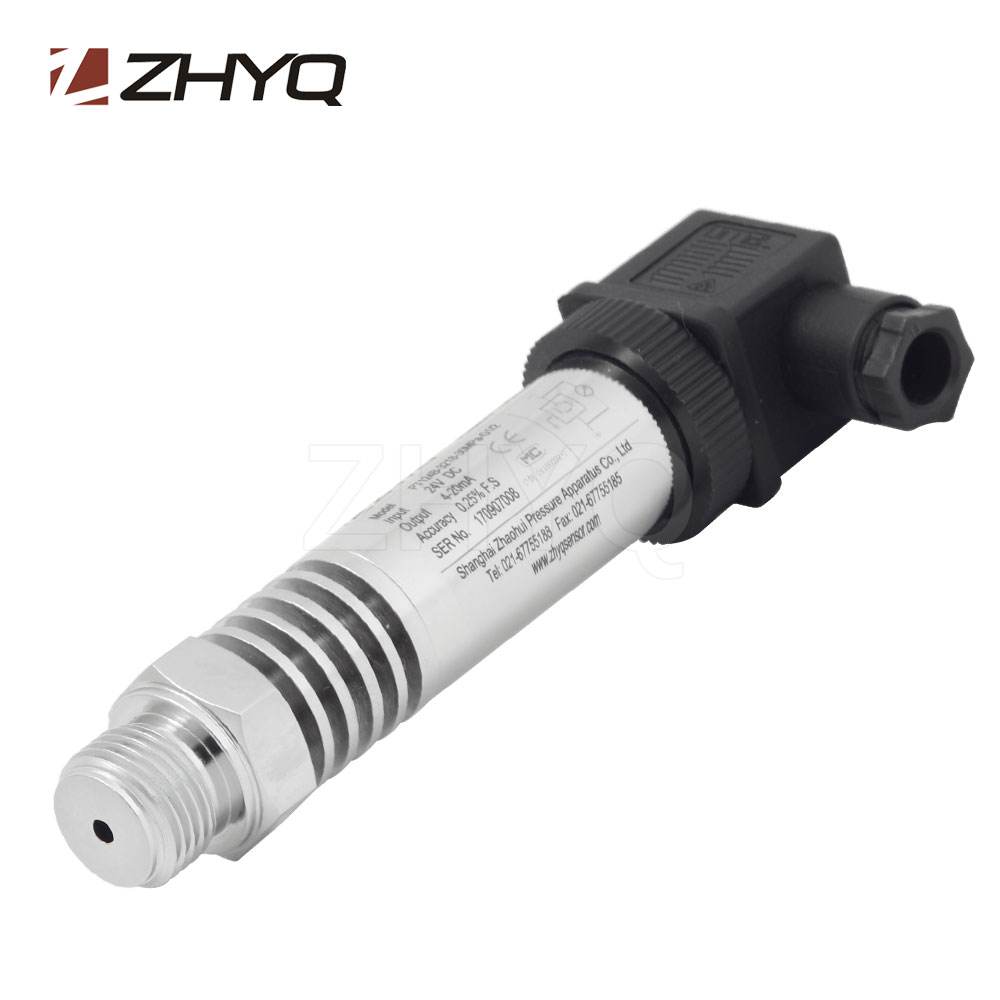

Moderate temperature industrial pressure transmitter
Model:PT124B-218
Description:

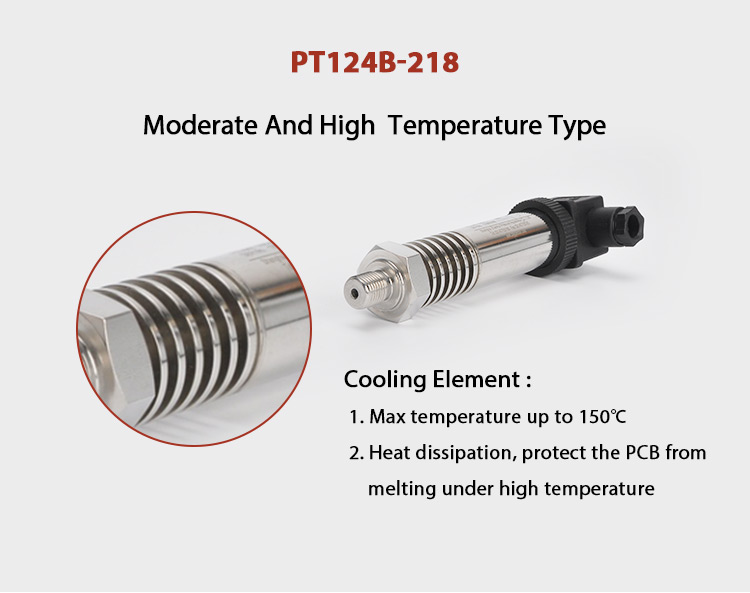

PT124B-218 series pressure transmitter adopts imported thermo stability sensing element, make the transmitter work stability under 150℃. And it welds with cool lasing technology, there are cooling ribs between the pressure sensor chips and amplifier electrical circuit, it avoids the heat conduction efficiently.
Send inquiry Download PDF
- Various industrial standard signal output
- Various electrical connector available
- Certain stock for shortening delivery time
- High accuracy, free of calibration
- compact dimension design
- This item is suitable for measuring and controlling the pressure of moderate and high temperature (up to 150℃) fluid and steam.
| Pressure range | -1~0~1bar; 0~1~2000bar |
| Over load | 150%FS |
| Burst pressure | 300%FS |
| Output | 4-20mA, 1-5V/0-5V, 0-10V |
| Power supply | 12~36VDC |
| Response time | <5ms |
| Combine error | 0.25%FS; 0.5% FSO (Including Linearity, Repeatability & Hysteresis) |
| Repeatability | ≤ +/- 0.2%FSO |
| Long term stability | ≤ +/-0.2%FS/year |

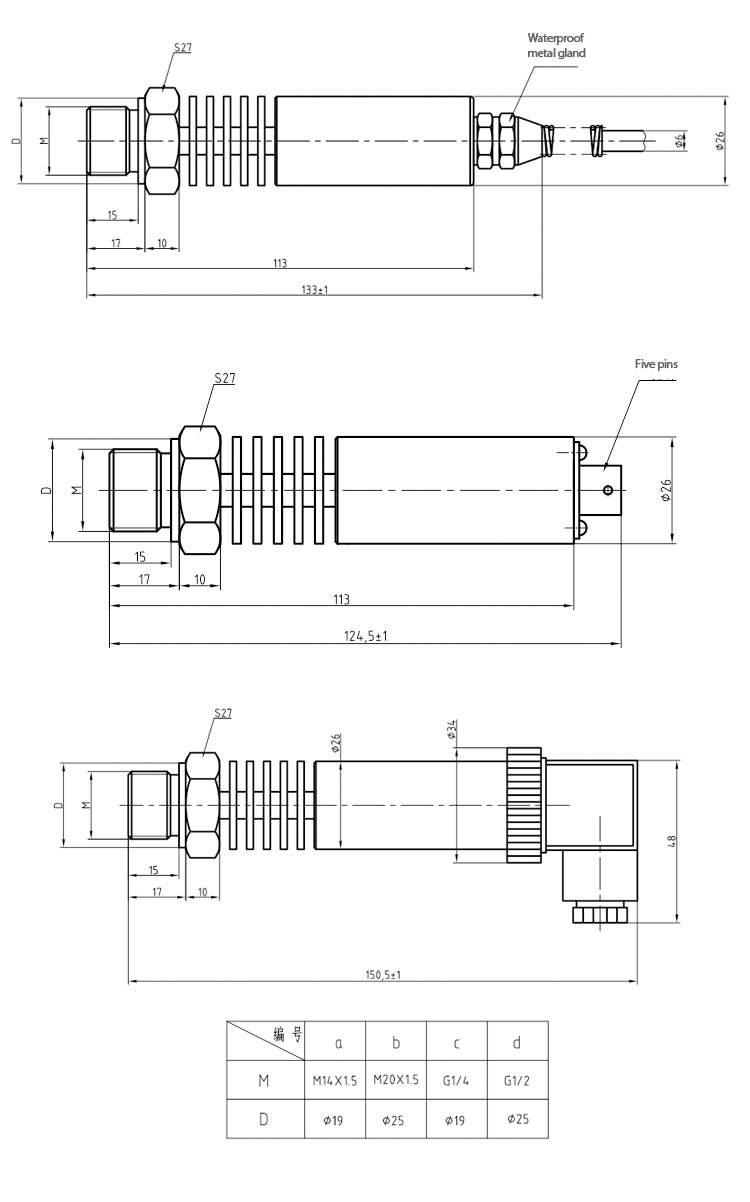

| Pressure connection | M20×1.5, G1/2,G1/4, 1/2NPT （ customer tailor ） |
| Operating temperature | -20 ℃ ～ 150 ℃ |
| Temperature compensation | 0℃ ～ 60℃ |

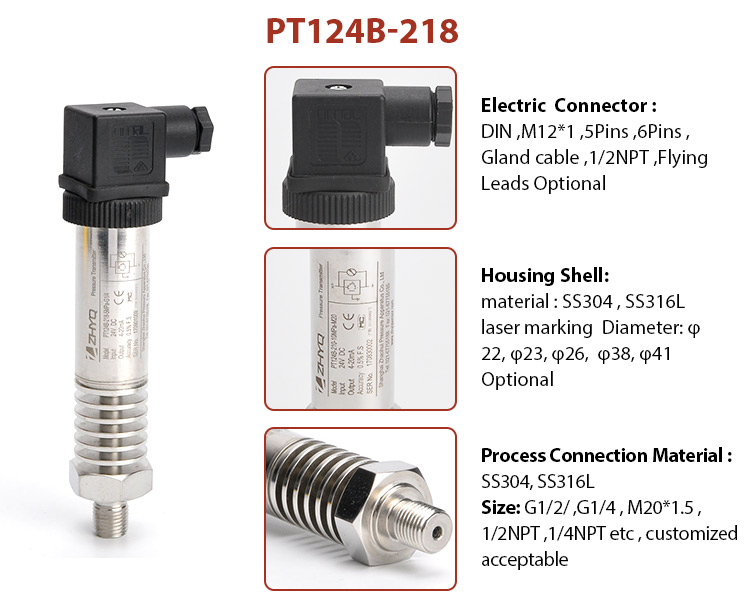

| Electrical connector | Bendix connector,Hirschman DIN4365 and Gland lead |
