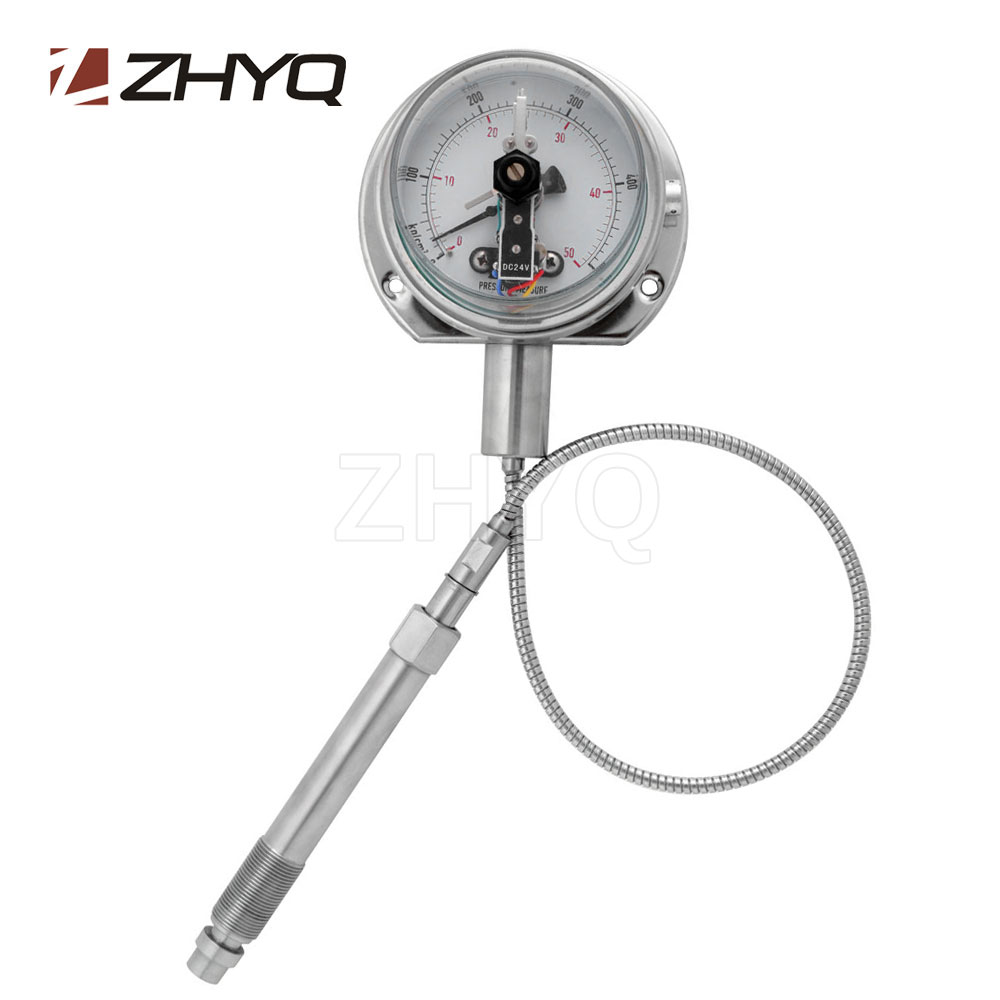

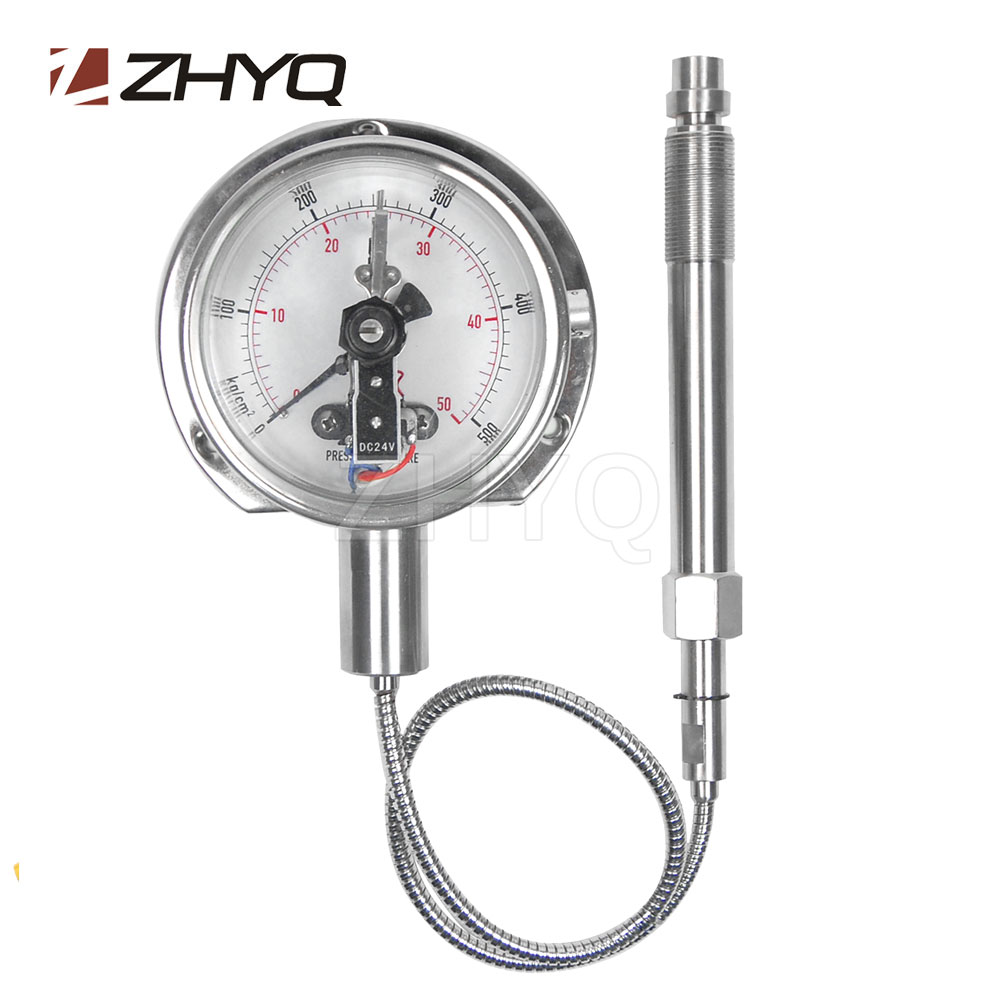

Electric contact melt pressure gauge
Model:PT124Y-616
Description:
PT124Y-616 adopts the original packaging machine stamen with signal and electric contact output, and designed with all stainless steel structure, isolated diaphragm and local index display. With dial plate’s stem-up and stem-down versions, the gauge head can be rotated 360°for unobstructed viewing.
Send inquiry Download PDF- Direct, local reading
- Stem-up and stem-down version
- Install easily, high reliability
- Zero adjustment
- Alarm relay
- Chemical fibre and filature
- Rubber & plastic machinery
- The equipment of high temperature steam
| Range | 0….10MPa to 0….150MPa |
| Output | Contact switch signal |
| Accuracy | ±1.6%FS |
| Input Voltage | 24VDC (12~36)VDC; 200VAC ;380VAC |
| Configuration | Bourdon tube |
| Over Pressure | 1.5×FS |
| Max Diaphragm Temperature | 350℃ |
| Dial Diameter | 100mm |
| Flexible Length | 0.5…5M |
| Electric connector | Direct cable |
| Process connector | M22*1.5 , G3/4（customer tailor） |
| Electric connector | 5 pins , DIN , gland leading |
| Wiring diaphragm | Red / yellow for NO ; Red/blue for NC |
