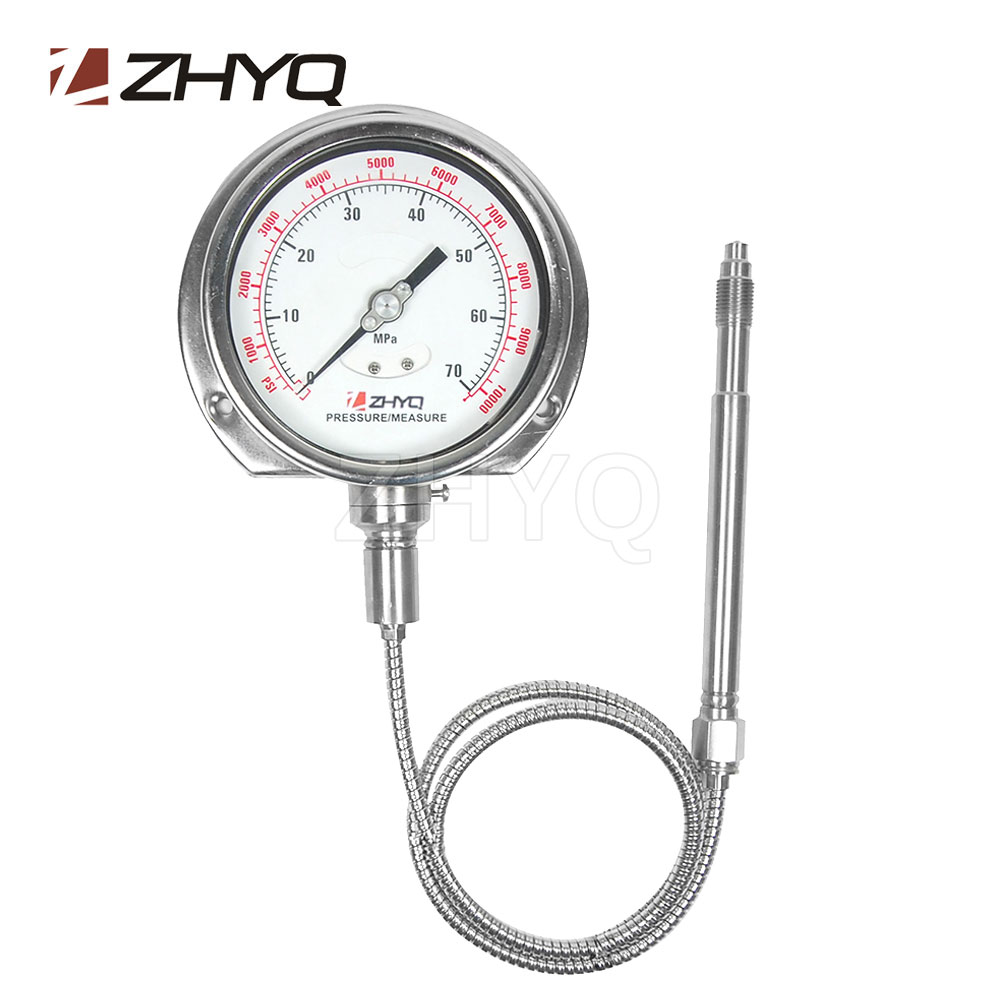

Remote Melt Pressure Gauge
Model:PT124Y-614
Description:

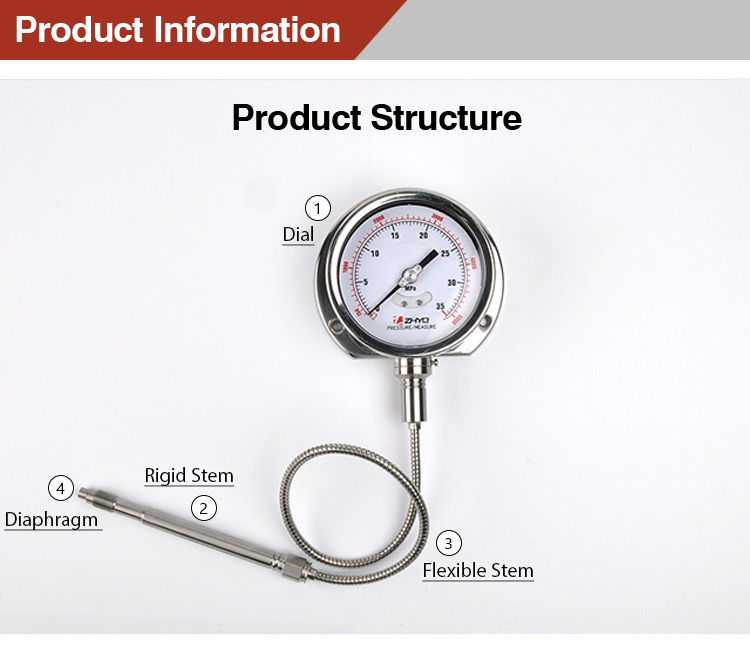

The flexible stem melt pressure gauge, adopts the original packaging machine core, and designed with all stainless steel structure, with dial plate’s step-up and stem-down versions.
Send inquiry Download PDF
- Direct, local reading
- Step-up and stem-down version
- Customer defined pressure gauge
- Install easily, high reliability

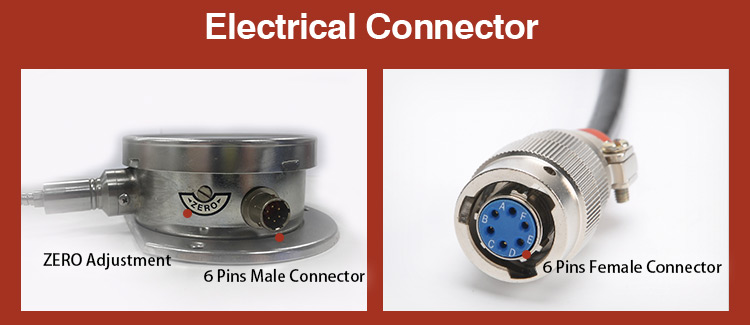

- Zero adjustment
- Chemical fiber and filature
- Rubber & plastic machinery
- The equipment of high temperature steam
| Range | 0~16MPa~150MPa |

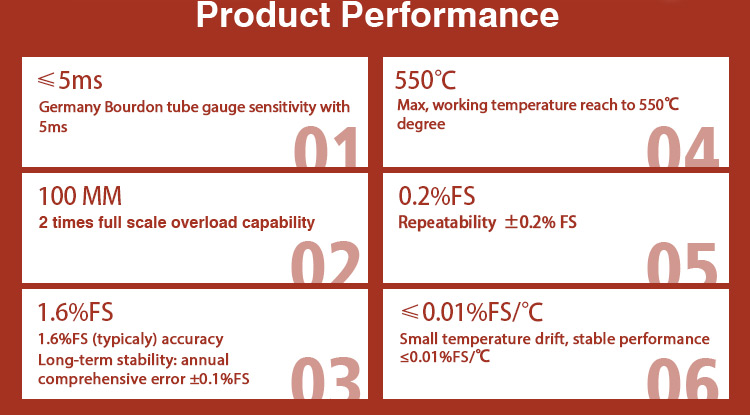

| Accuracy | ±1.6%FS; |
| Configuration | Bourdon tube |
| Over Pressure | 1.5×FS |
| Dial Diameter | 100mm |
| Flexible Length | 0.5…5m |

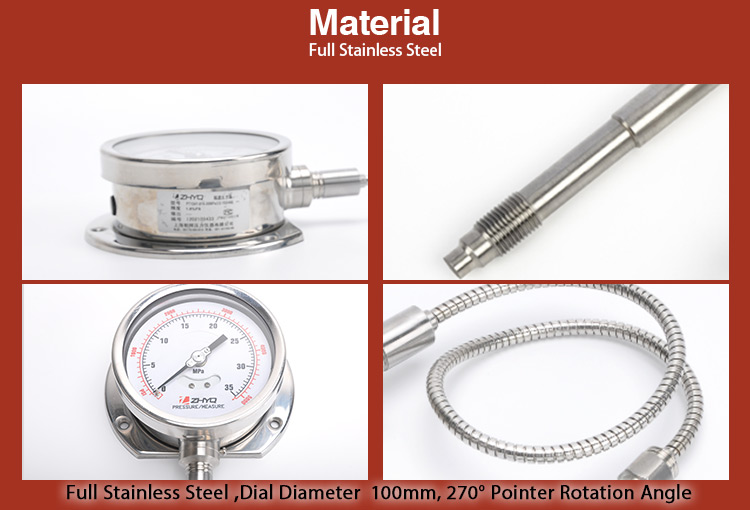

| Case material | Stainless steel with safety glass |

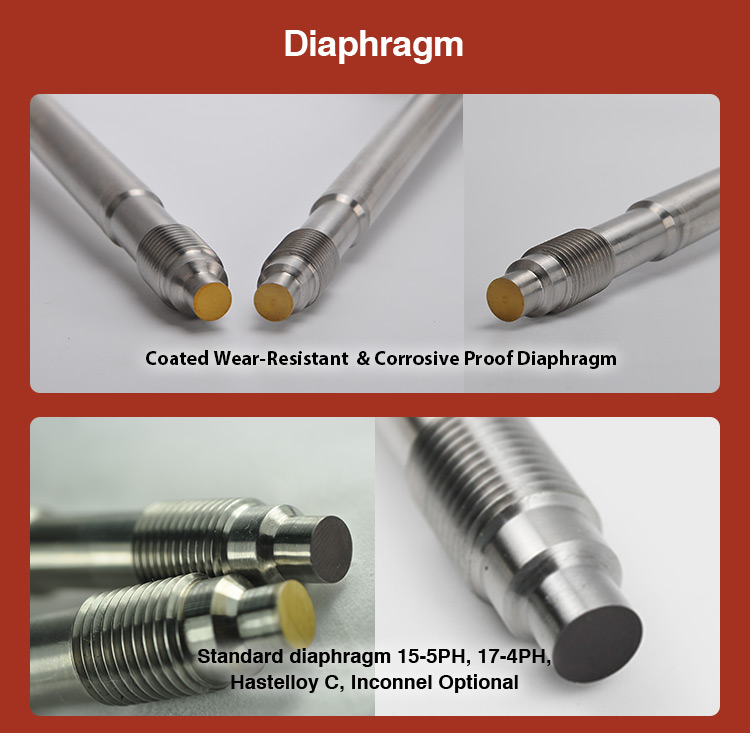

| Max Diaphragm Temp. | 350℃ |
| Process Connector | 1/2″-20UNF, M14×1.5, M18×1.5（Optional） |
