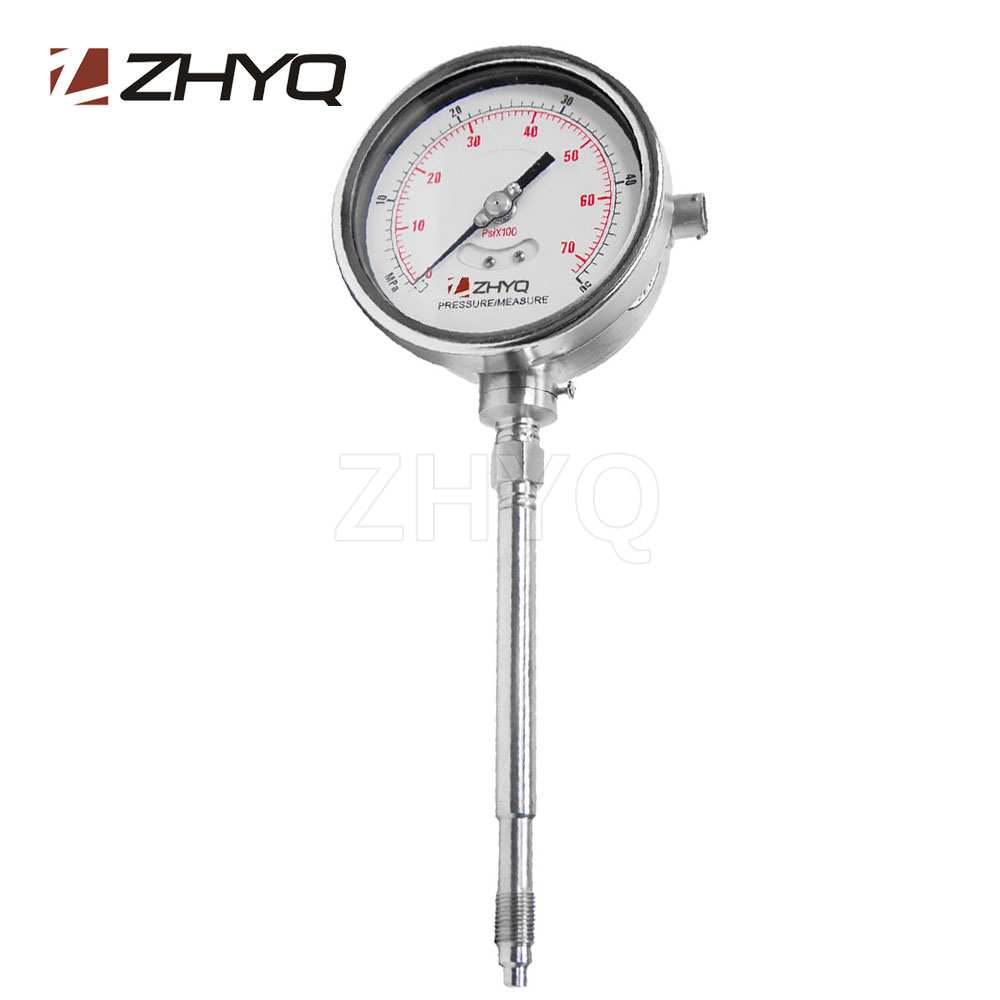

Rigid Rod Melt Pressure Gauge with Transmitter Output
Model:PT124Y-612
Description:

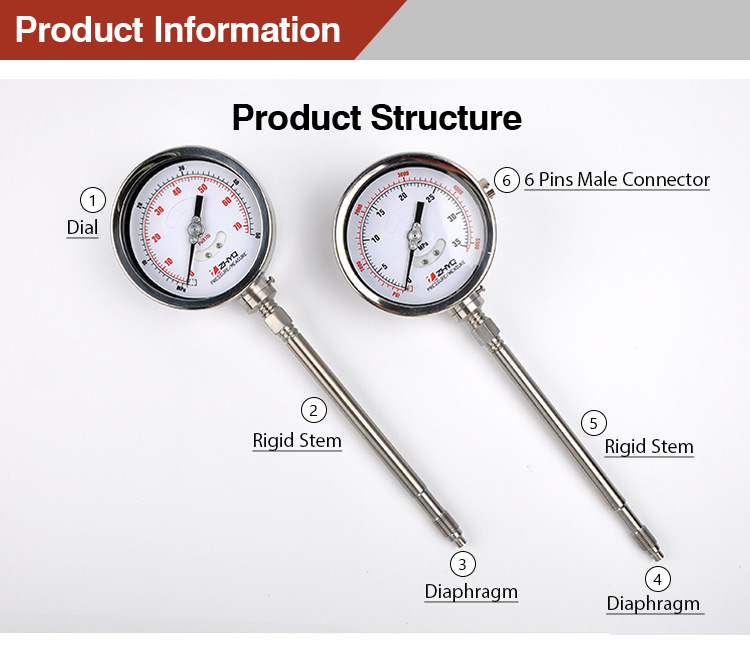

The melt pressure gauge designed with all stainless steel structure, isolated diaphragm and local index display. With dial plate’s step-up and stem-down versions.
Send inquiry Download PDF
- With signal output
- Stainless steel sealing
- Install easily
- Zero adjustment
- High reliability and good repeatability
- Chemical fiber and filature
- Rubber & plastic machinery
- The equipment of high temperature steam
- High temp fluid pressure measuring and controlling
| Range | 0~16MPa~150MPa |

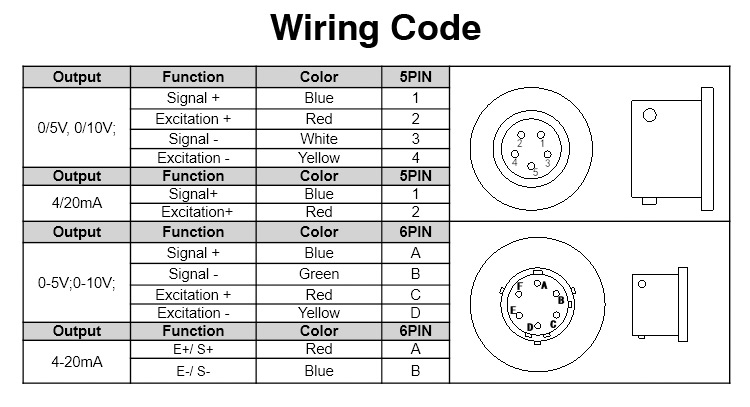

| Output: | 3.33mV/V,4-20mA |
| Accuracy | ±1.6%FS |
| Configuration | Bourdon tube |
| Over Pressure | 1.5×FS |
| Dial Diameter | 100mm |
| Needle sweep: | 270º |

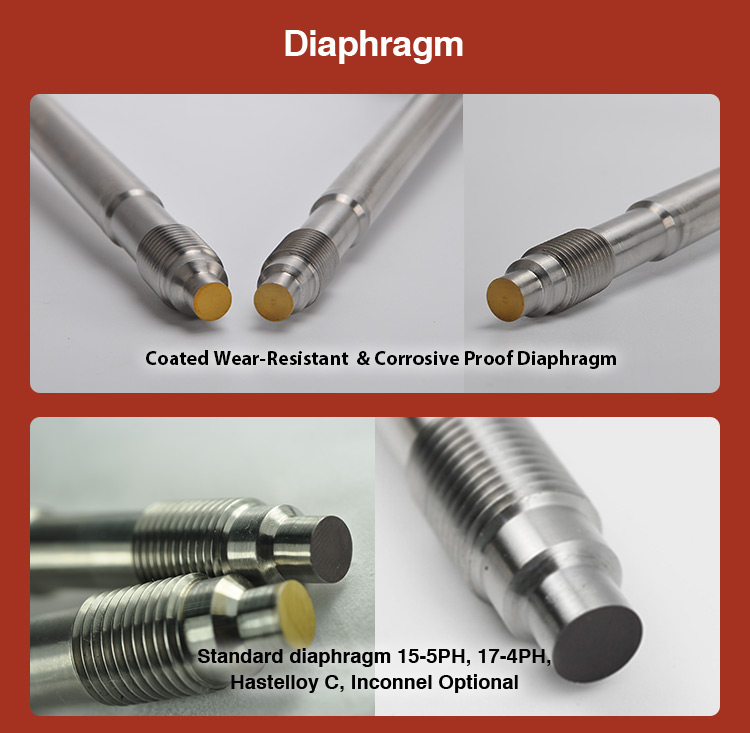

| Diaphragm material: | Stainless steel |

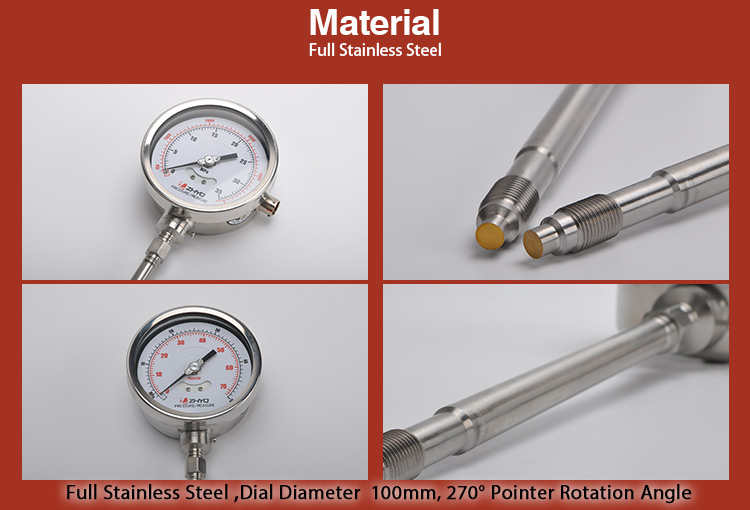

| Case material: | Stainless steel with safety glass |
| Max Diaphragm Temp. | 350℃ |
| Process Connection | 1/2-20UNF, M14*1.5, M22×1.5;M18×1.5（Optional） |
