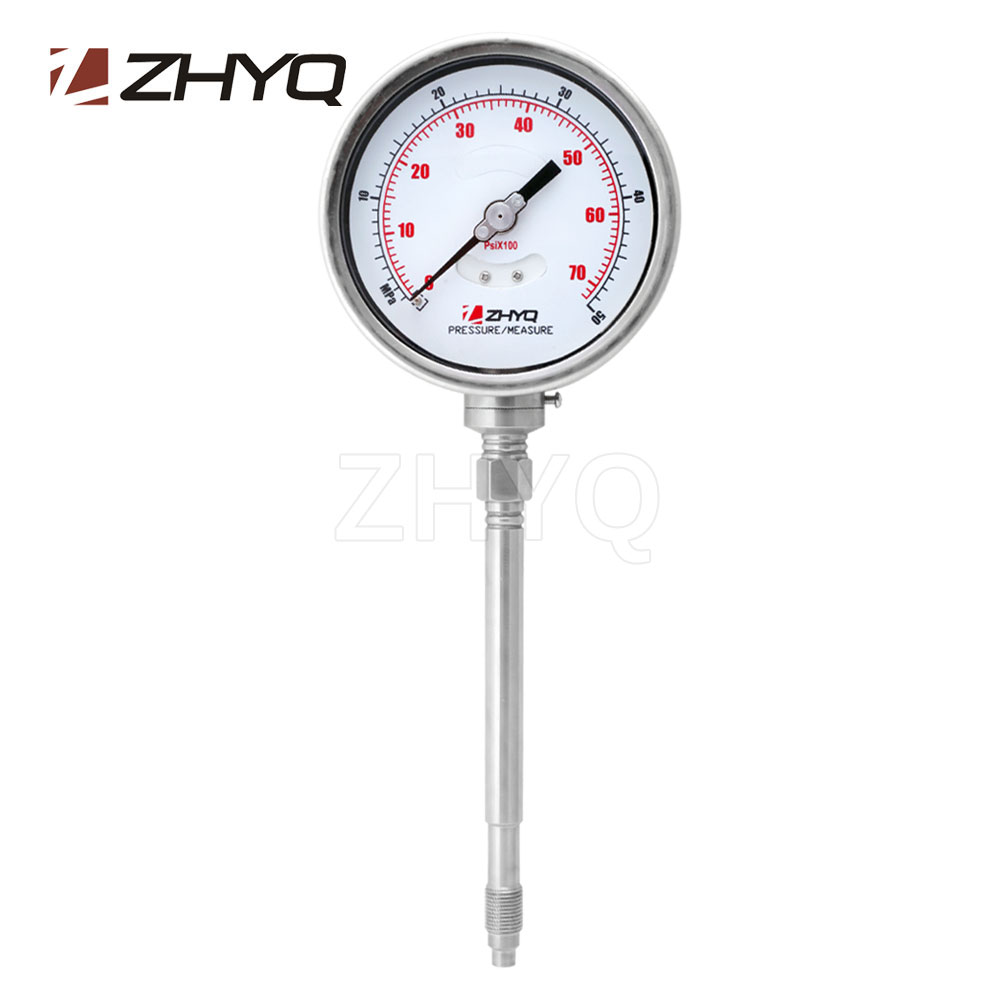

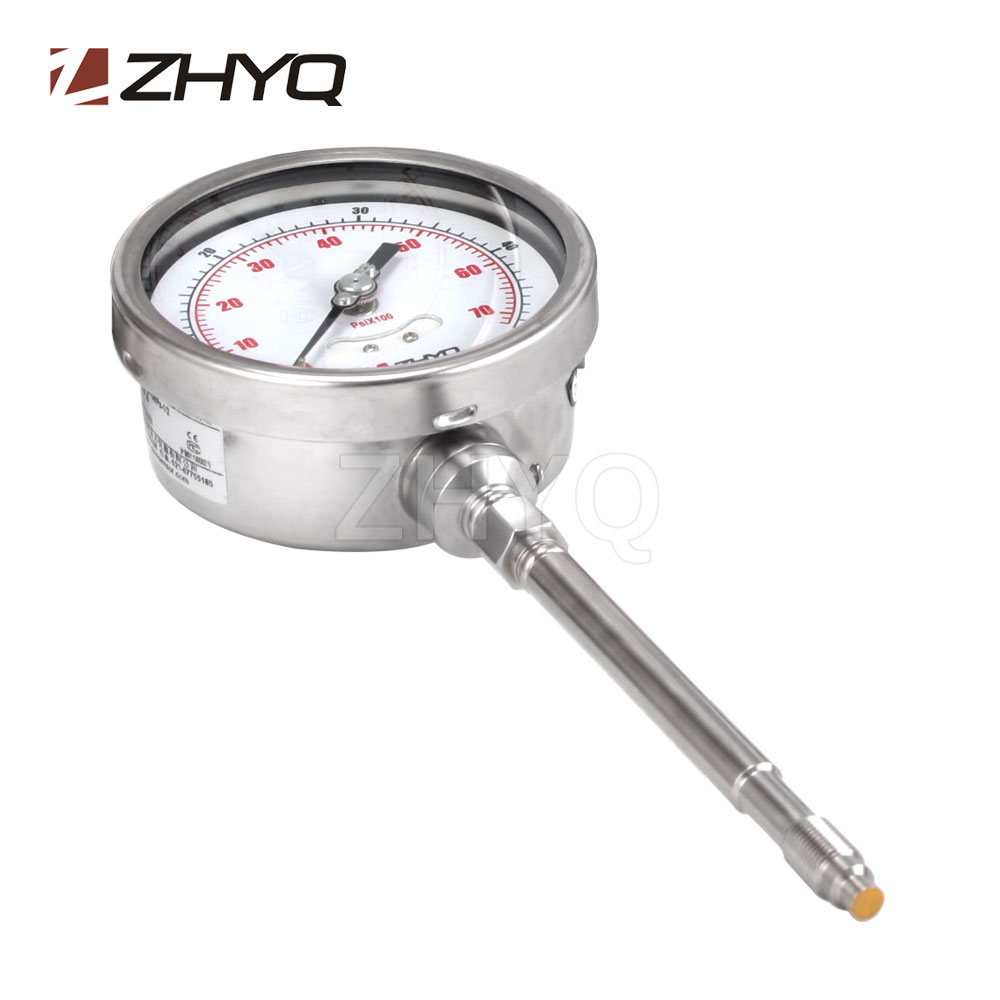

Rigid stem melt pressure gauge
Model:PT124Y-610
Description:
The rigid rod melt pressure gauge, adopts the original German packaging machine stamen, dial plate’s step-up and stem-down versions, the gauge head can be rotated 360°for unobstructed viewing.
Send inquiry Download PDF- Direct, local reading
- Mechanical design
- Step-up and stem-down version
- Install easily, high reliability
- Zero adjustment
It is widely used in chemical fibre and filature, rubber & plastic machinery, high temperature steam, high temp fluid pressure measurement and control.
| Range | 0~16MPa~150MPa |
| Accuracy | ±1.6%FS |
| Configuration | Bourdon tube |
| Over Pressure | 1.5×FS |
| Dial Diameter | 100mm |
| Needle sweep: | 270º |
| Diaphragm material: | Stainless steel |
| Case material: | Stainless steel with safety glass |
| Max Diaphragm Temp. | 350℃ |
| Process Connection | 1/2-20UNF, M14*1.5, M22×1.5;M18×1.5,（Optional） |
