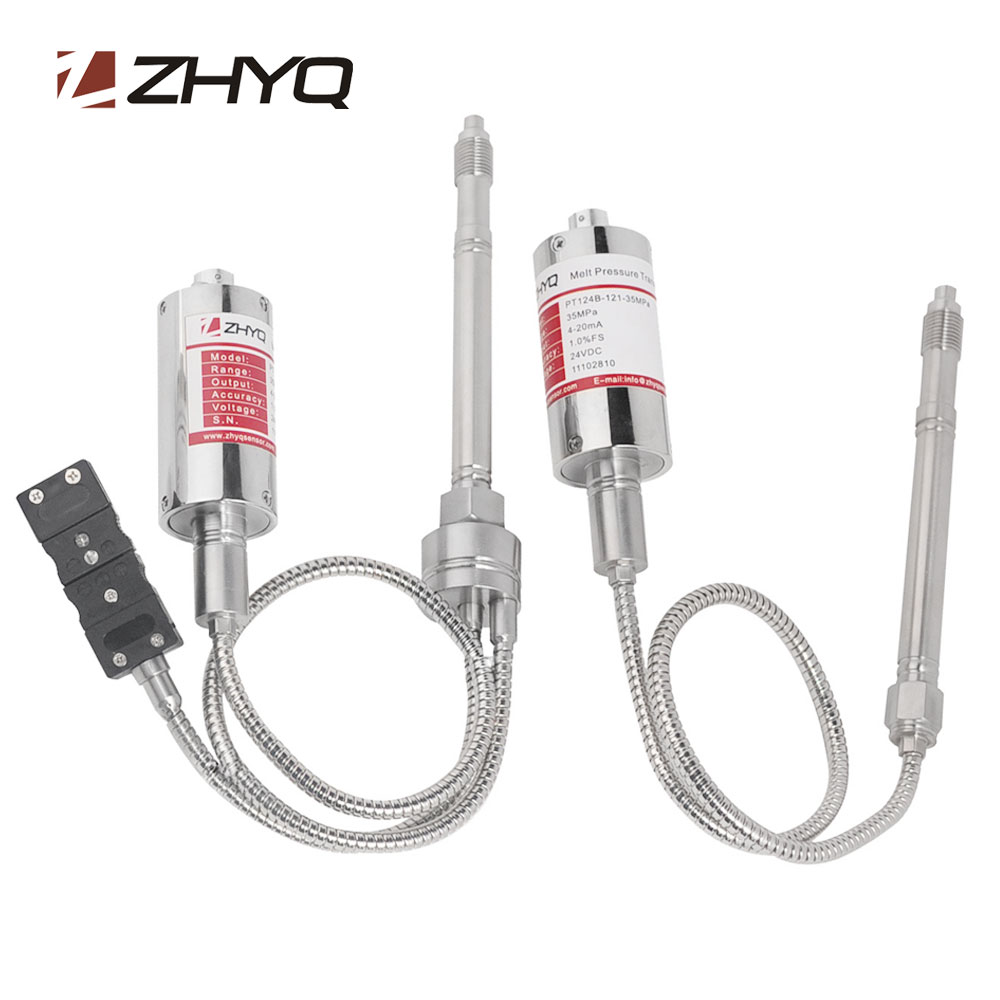

Economic flexible pressure transducer for plastic machinery

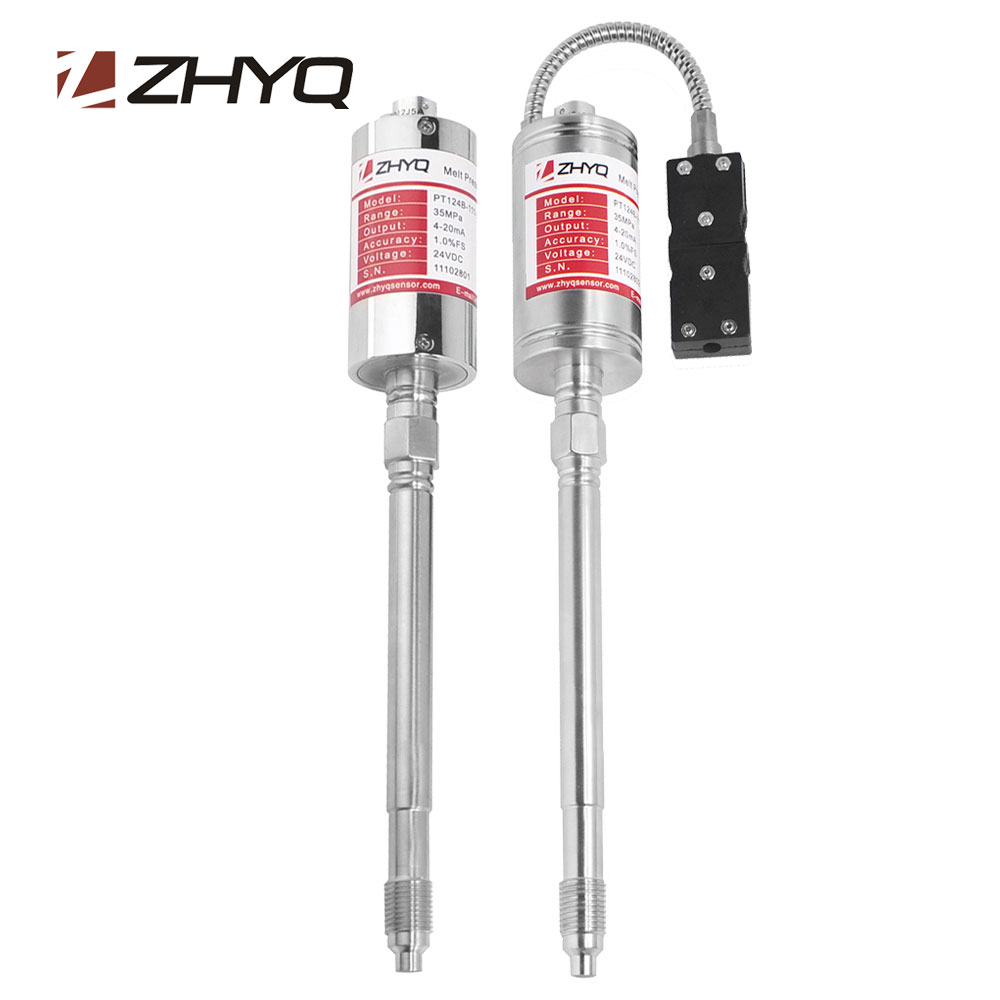

Model:PT124G-111/111T/121/121T
Description:

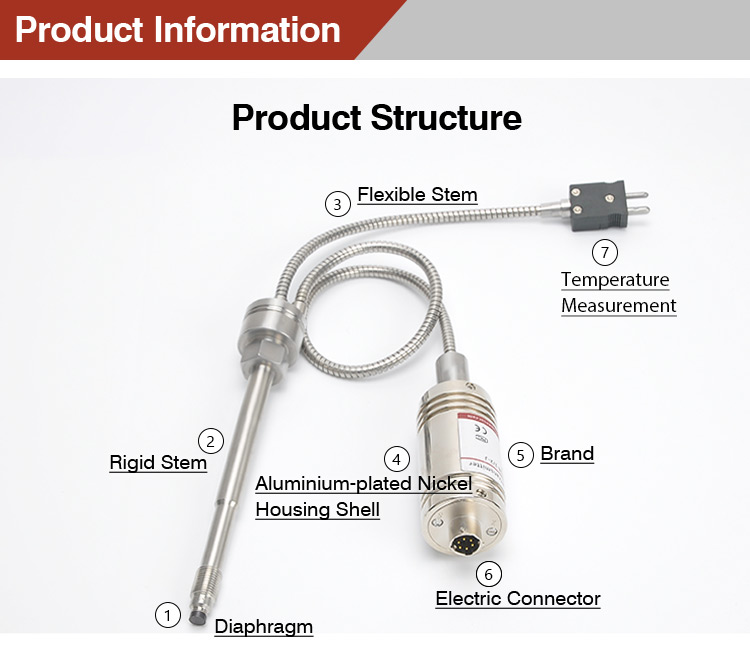

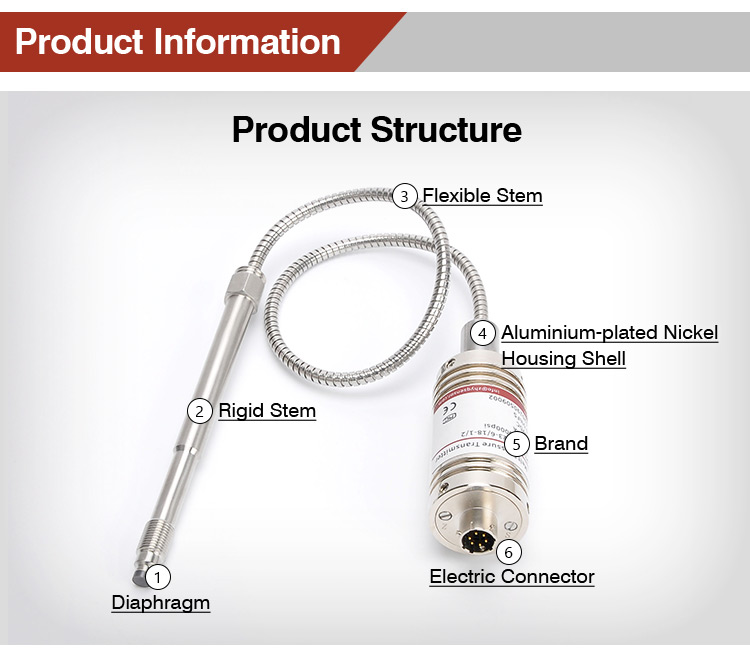

PT124G-111/111T/121/121T Series melt pressure transducer is economic type pressure transmitter designed with rigid stem construction. And the model PT124G-111T/121T comes with thermocouple, it can measure the pressure and temperature at one point. This product built in 80% shunt calibration, it can match the N series pressure instrument from ZHYQ, also can match the pressure instrument or controller of other brand. This product has advantage of stability and repeatability, good anti-jamming performance. This series product is widely used in the domestic.
Send inquiry Download PDF
- High-standard quality

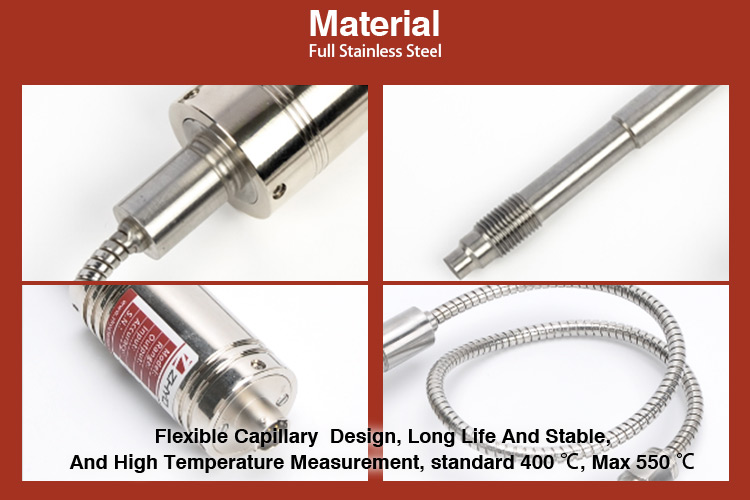

- Stainless steel Seal
- Simple Installation
- 80% inner calibration
- Excellent stability and repeatability
- It can be widely used in various plastic extrusion lines for pressure measuring and control, such as chemical fiber manufacturing equipment, plastic rubber machine, polyester equipment and petrochemical.
| Item | Specification |
| Pressure range | 0-3.5MPa…0-150MPa (0-500psi…20000psi) |
| Over Pressure | 1.5 X FSO |
| Combined Error | ± 0.5% FSO (Including Linearity, Repeatability & Hysteresis) |
| Output | 2mV/V |
| Input Voltage | 10VDC |
| Repeatability | +/- 0.2%FSO |
| Bridge Resistance Input | 345 Ohms minimum |
| Bridge Resistance Output | 350 Ohms +/- 10% |
| Internal Shunt Calibration (R-Cal) | 80% FSO +/- 1% |
| Insulation Resistance | 200 megohms @ 100 Vdc |
| Max Diaphragm Temperature | 300 ℃ |
| Mounting Torque | 500 inch/lbs. max. |

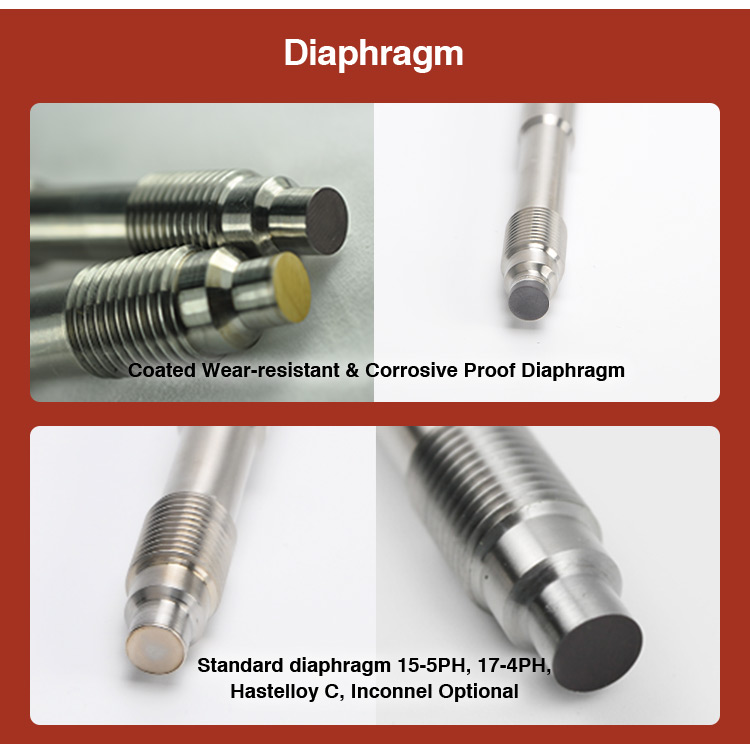

| Standard Wetted Parts | Diaphragm coated 15-5 PH SST |

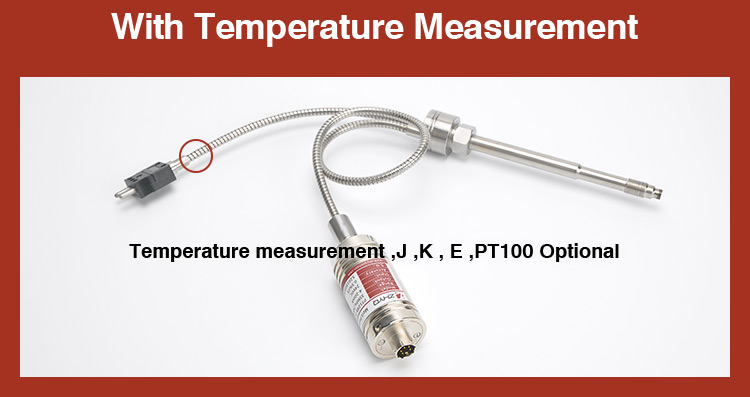

| Temperature sensor (Optional) | J, K, E or PT100 |

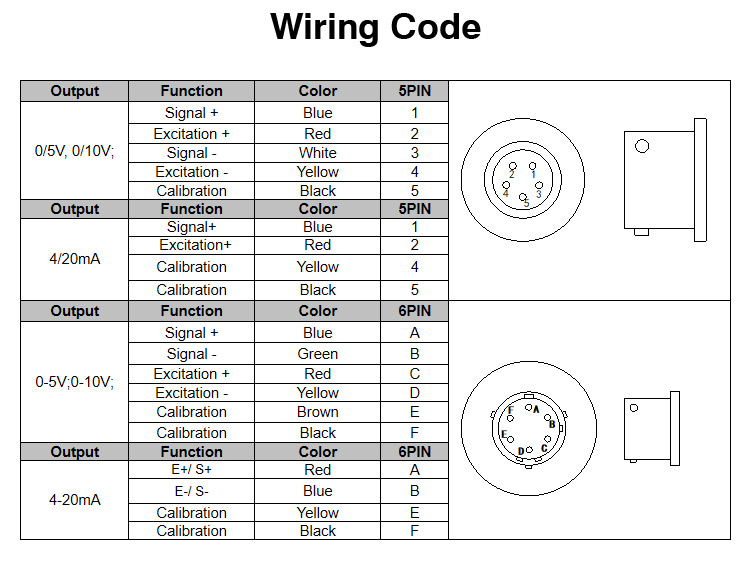

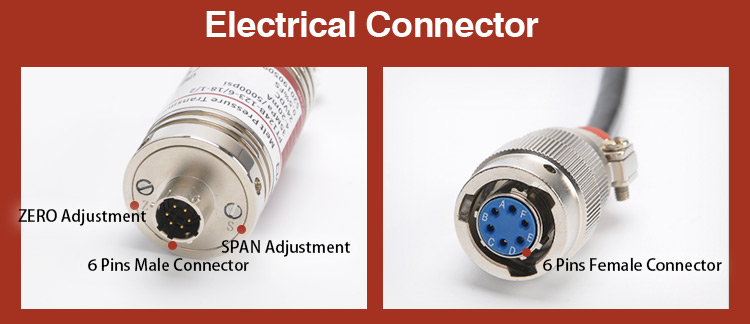

| Electrical connector | 5PIN |

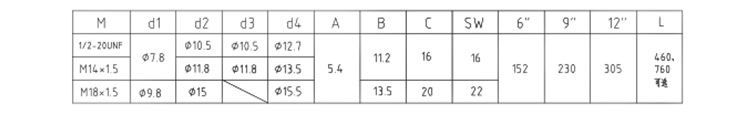

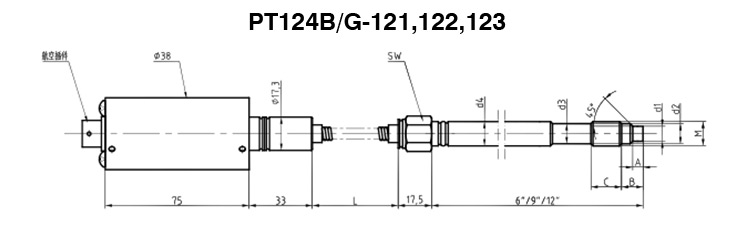

| Process connector | M14×1.5, 1/2-20UNF, M18×1.5 Optional |
