Cost-effective melt pressure transducer

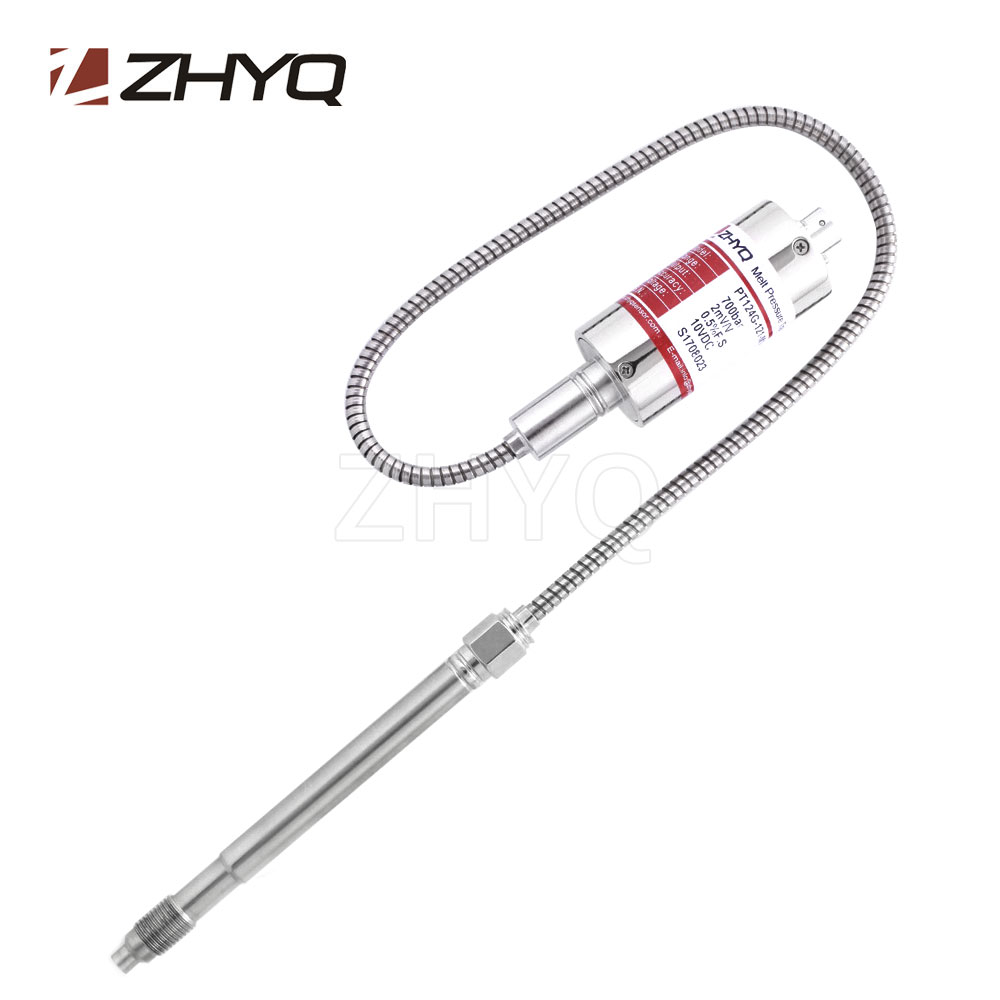

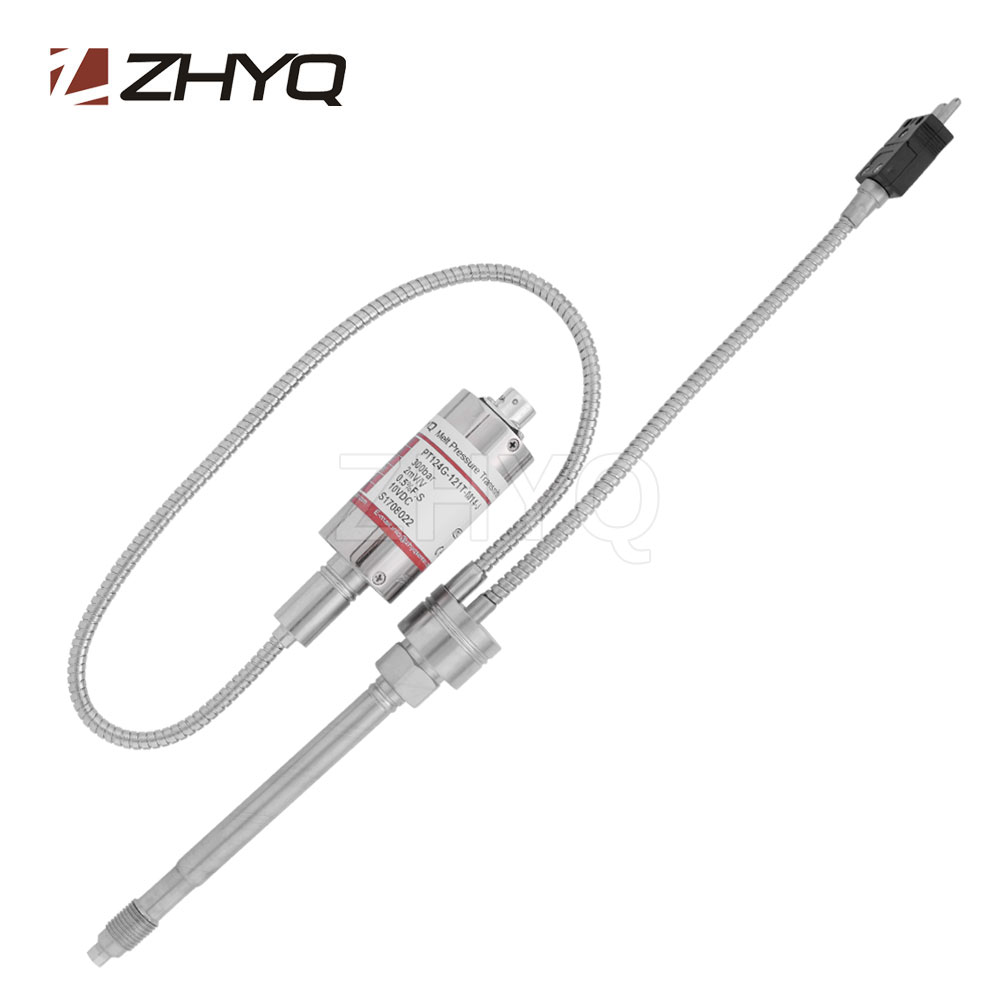

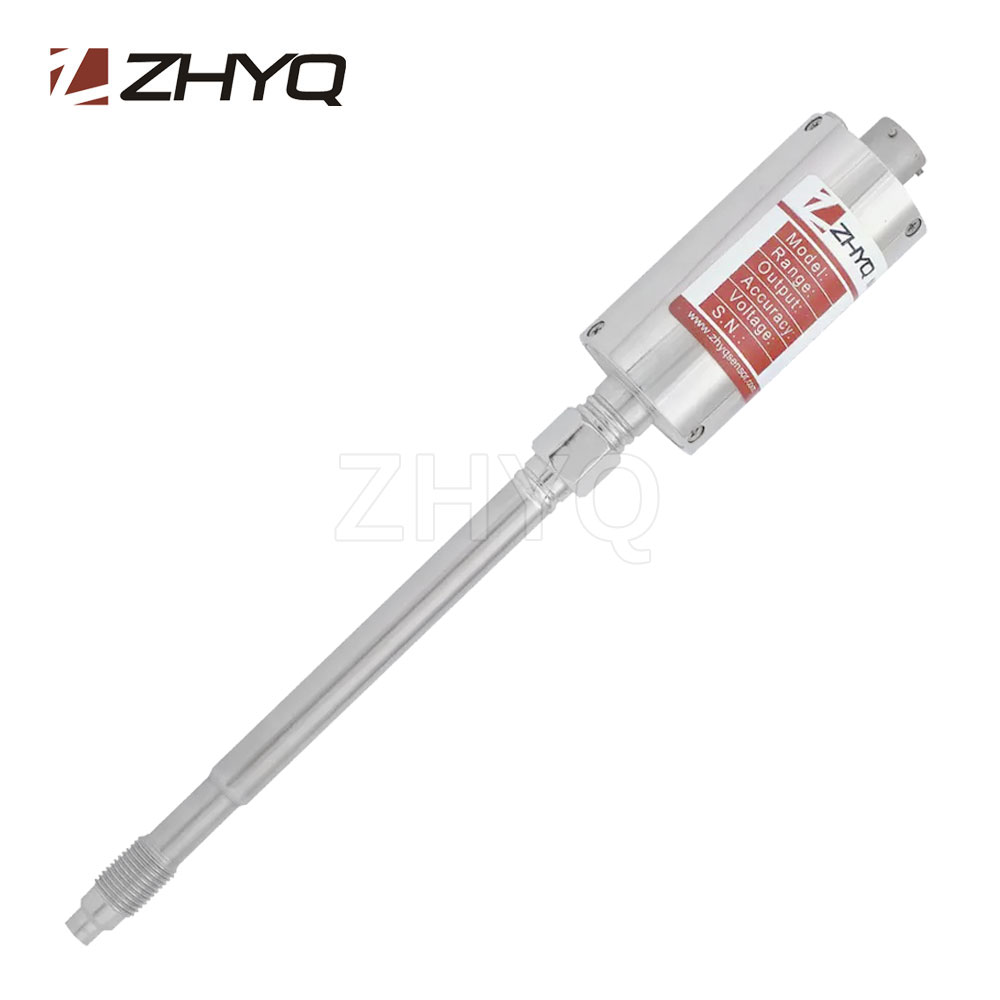

Model:PT124B-111/ 111T/121/121T
Description:

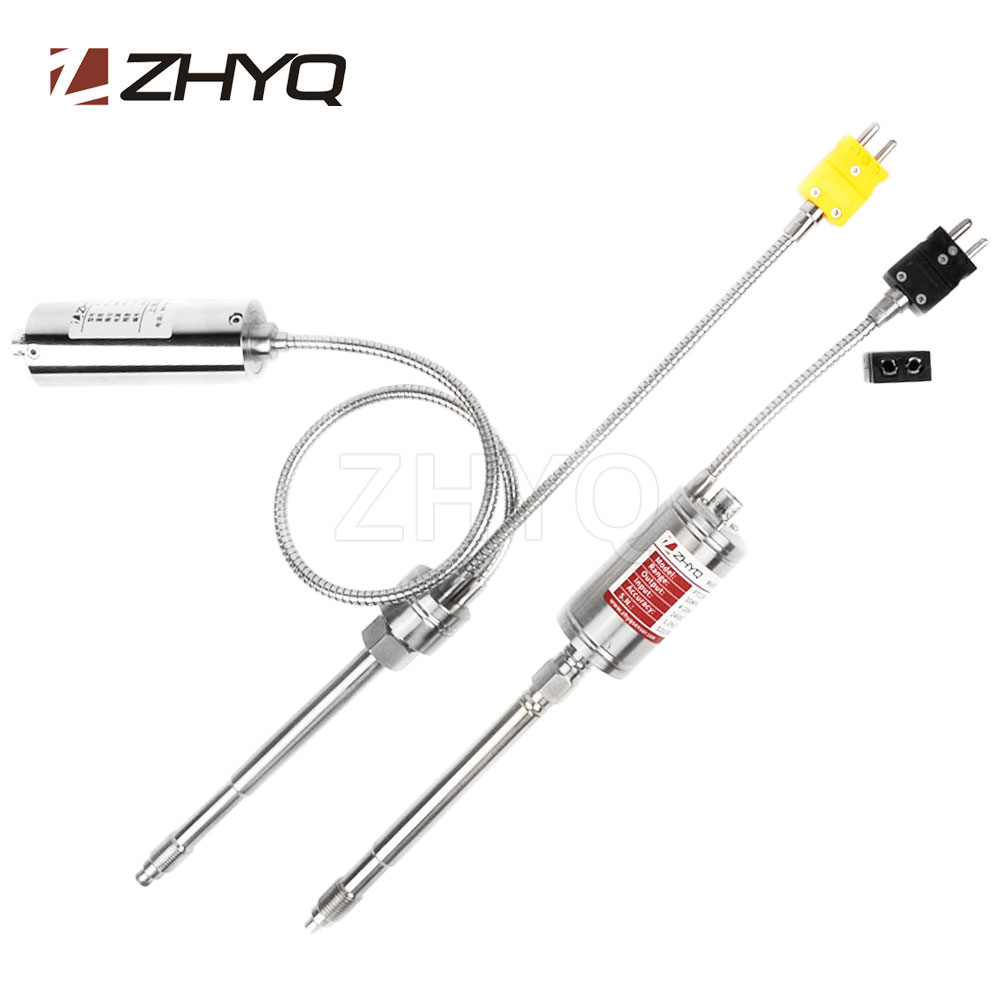

PT124B-111/ 111T/121/121T Series melt pressure transducer is economic type, designed with rigid stem construction. And the model PT124B-111T comes with thermocouple, it can measure the pressure and temperature at one point. This product built in amplifier circuit board and 80% shunt calibration, zero and span adjustable, the output signal can input PLC directly. And it can match the N series pressure instrument from ZHYQ, also can match the pressure instrument or controller of other brand.
Send inquiry Download PDF
- Widely pressure range
- Stainless steel Seal
- Simple Installation
- 80% inner calibration
- Excellent stability and repeatability
- It can be widely used in various plastic extrusion lines for pressure measuring and control, such as meltblown nonwoven, chemical fiber manufacturing equipment, plastic rubber machine, polyester equipment and petrochemical.
| Pressure range | 0-3.5MPa…0-150MPa (0-500psi…0-20000psi) |
| Over Pressure | 1.5 X FSO |
| Combined Error | ± 1.5% FSO; ±1.0% FSO (Including Linearity, Repeatability & Hysteresis) |
| Output | 4-20mA, 0-10V, 0-5V |
| Input Voltage | 24VDC |
| Repeatability | +/- 0.2%FSO |
| Bridge Resistance Input | 345 Ohms minimum |
| Internal Shunt Calibration (R-Cal) | 80% FSO +/- 1% |
| Insulation Resistance | 200 megohms @ 100 Vdc |
| Max Diaphragm Temperature | 300 ℃ |
| Mounting Torque | 500 inch/lbs. max. |
| Standard Wetted Parts | Diaphragm coated 15-5 PH SST |
| Thermocouple type | J, K, E, PT100 (PT124B-111T, PT124B-121T) |
| Electrical connector | 5PIN |
| Process connector | M14×1.5, M18×1.5 Optional |
