Product

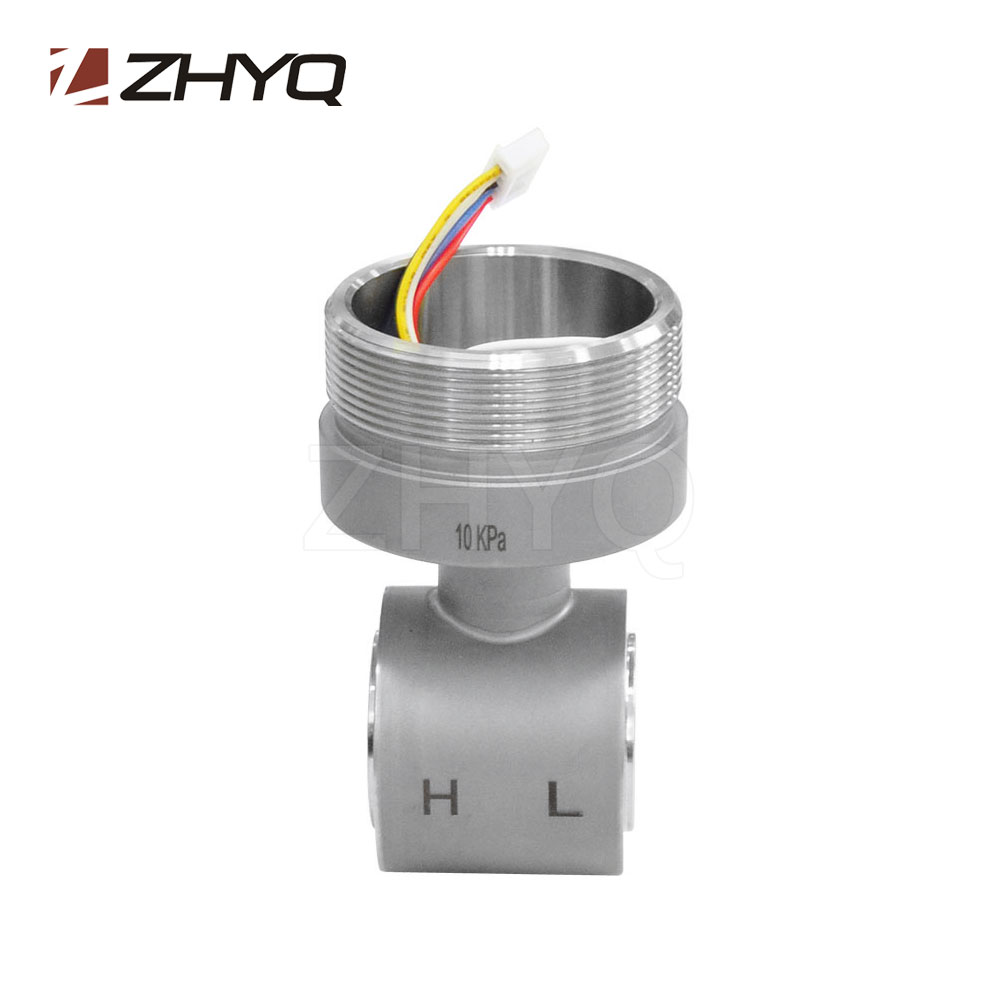

High precision monosilicon differential pressure sensor
Model:PT124G-3510
Description:
This series high precision monosilicon differential pressure sensor comes with ultra high overload performance, perfect temperature compensation, convenient installation and condition compatible; it can be widely used in various industrial control fields.
Send inquiry- Adopts FST monosilicon MEMS chip to encapsulate, precision up to 0.04%FS
- Excellent overload performance
- Suitable for negative pressure measurement
- Intelligent static pressure and temperature compensation, strong condition compatible
- Petrol oil, chemical industry, electrical power, paper making, metallurgy, coal gas and etc.
| Item | Value |
| Measurement range | 3KPa、6KPa、10KPa、40KPa、150KPa、250KPa、3MPa |
| Rated working pressure range | 2.5MPa、16MP、25MPa、40MPa |
| Overload | 150%F.S |
| Voltage | 5V DC |
| Signal output | 40-200mV |
| Operation temperature | -50~85℃ |
| Medium temperature | -50-125℃ |
| Non-linearly | ≤0.1%F.S |
| Long term stability | ≤0.05%F.S/yr. |
| Temperature effect | ≤0.3%F.S/yr. |
| Static pressure characteristics | ≤±0.1%F.S/10MPa |
| Long term drift | ≤0.05%F.S/yr. |
| Housing material | SS316 |
| Diaphragm material | SS316L、Hastelloy、Tantalum、gold-plating and etc. |
