OEM digital piezoresistive pressure sensor
Model:PT124G-3103
Description:

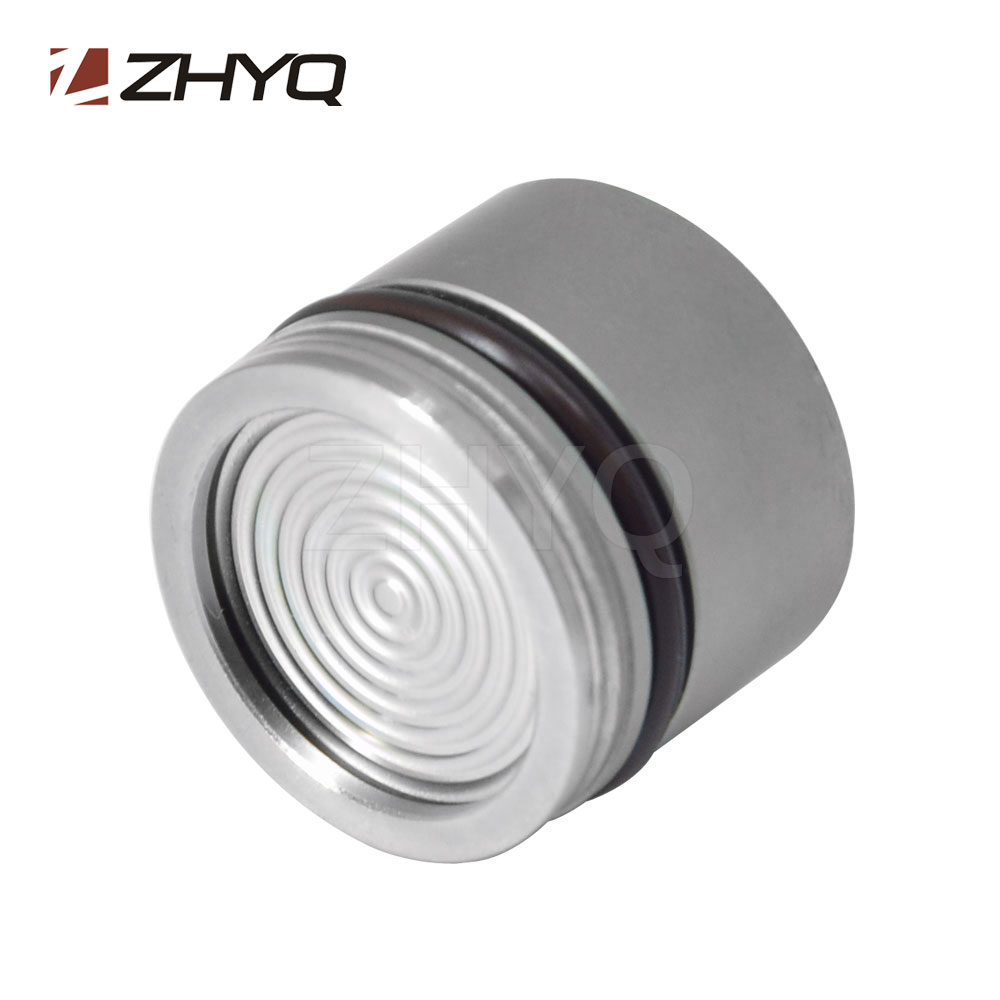

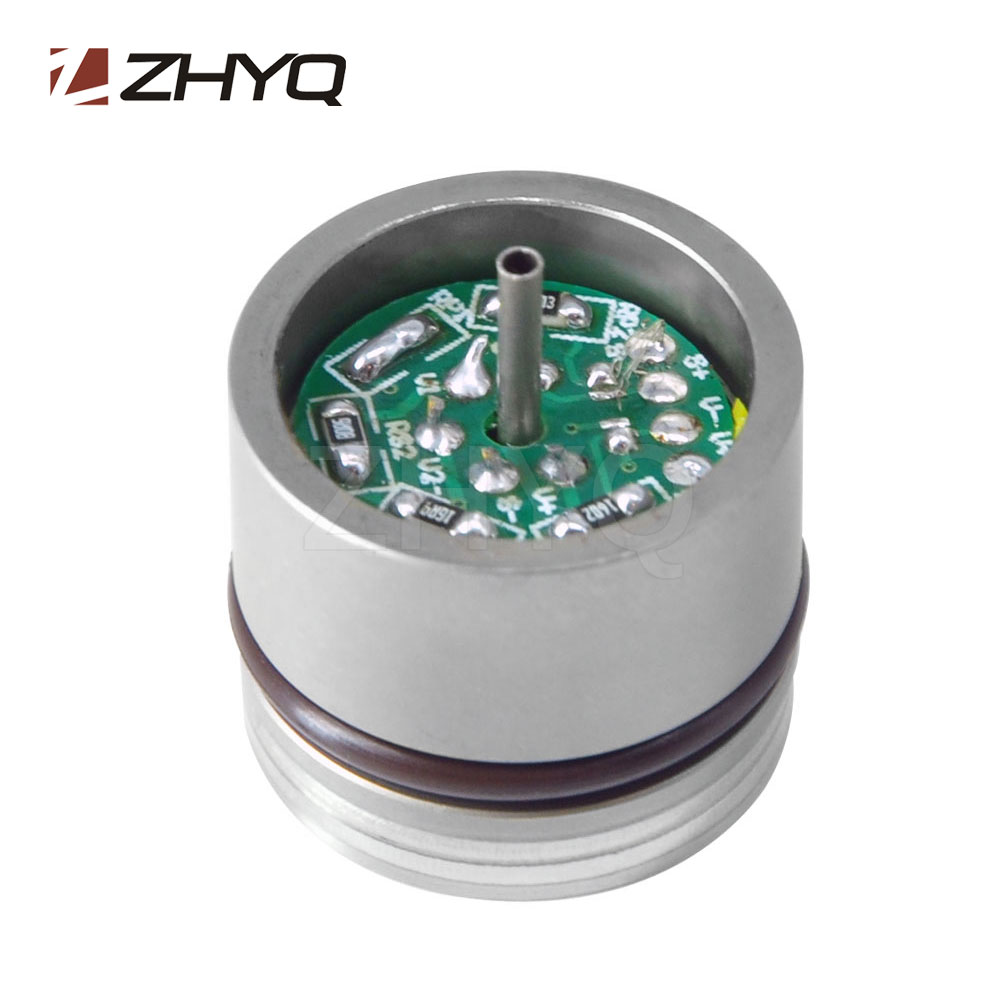

The OEM digital piezoresistive pressure sensor with 316L stainless steel corrugated diaphragm and isolated oil-filling construction. The sensing package utilizes silicone oil to transfer pressure from the 316L stainless steel diaphragm to the sensing die.
Send inquiry Download PDF- Gauge, absolute, sealed gauge
- Standard male thread for option
- Isolated construction, enable to measure various liquid
- Industrial process control
- Level measurement
- Gas, liquid pressure measurement
- Pressure checking meter Pressure calibrator
- Liquid pressure system and switch
- Cooling equipment and air conditioning system
- Aviation and navigation inspection
| Item | Parameter |
| Range | -0.1MPa…0kPa～10kPa…3.5MPa |
| Pressure Type | Gauge, Absolute, Sealed Gauge |
| Over Pressure | 1.5FS |
| Output | 0-100%, I2C |
| Accuracy | ±0.5%FS (pressure), ±1.5℃ (Temperature) |
| Power Supply | (5±0.1)V DC; (3.3±0.1)V DC |
| Long Term Stability | ±0.3%FS/year |
| Working Temperature | -10℃~80℃ |
| Storage Temperature | -40℃~125℃ |
| Shock | 10g,20Hz~2000Hz |
| Impact | 100g,11ms |
