Product

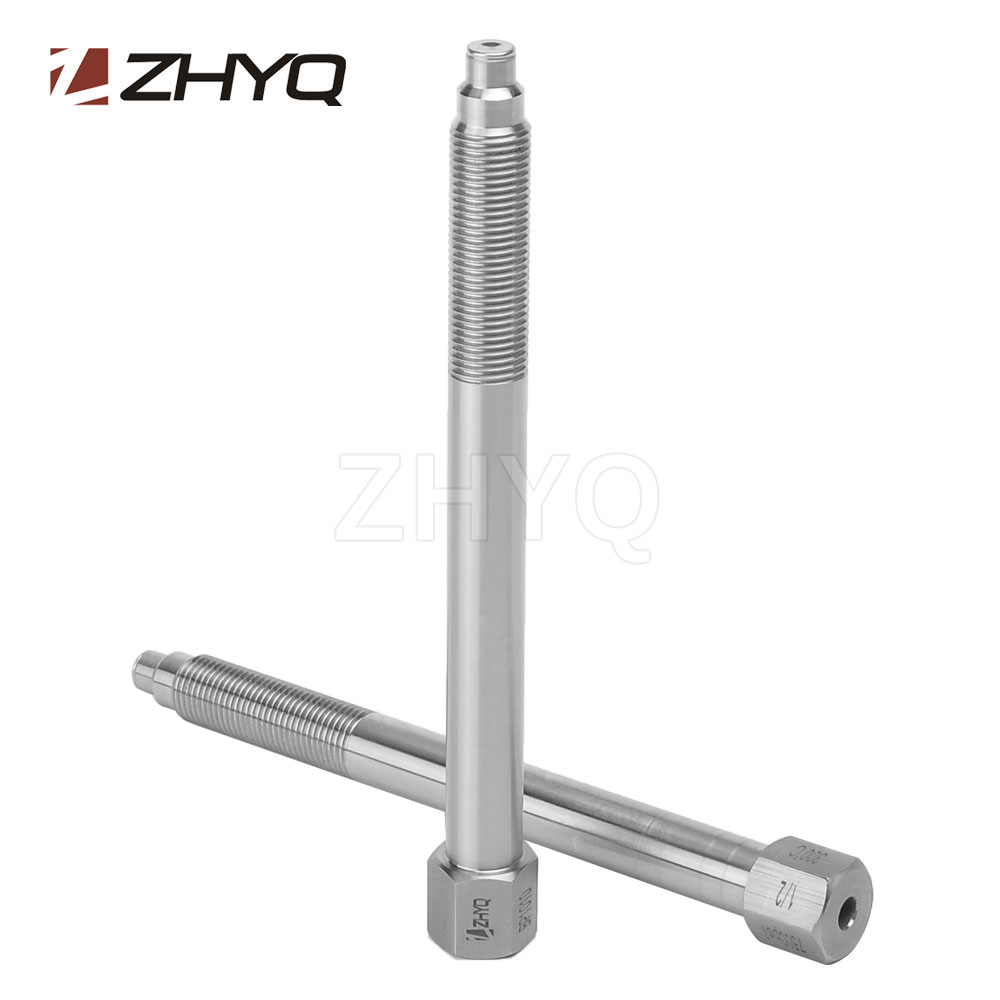

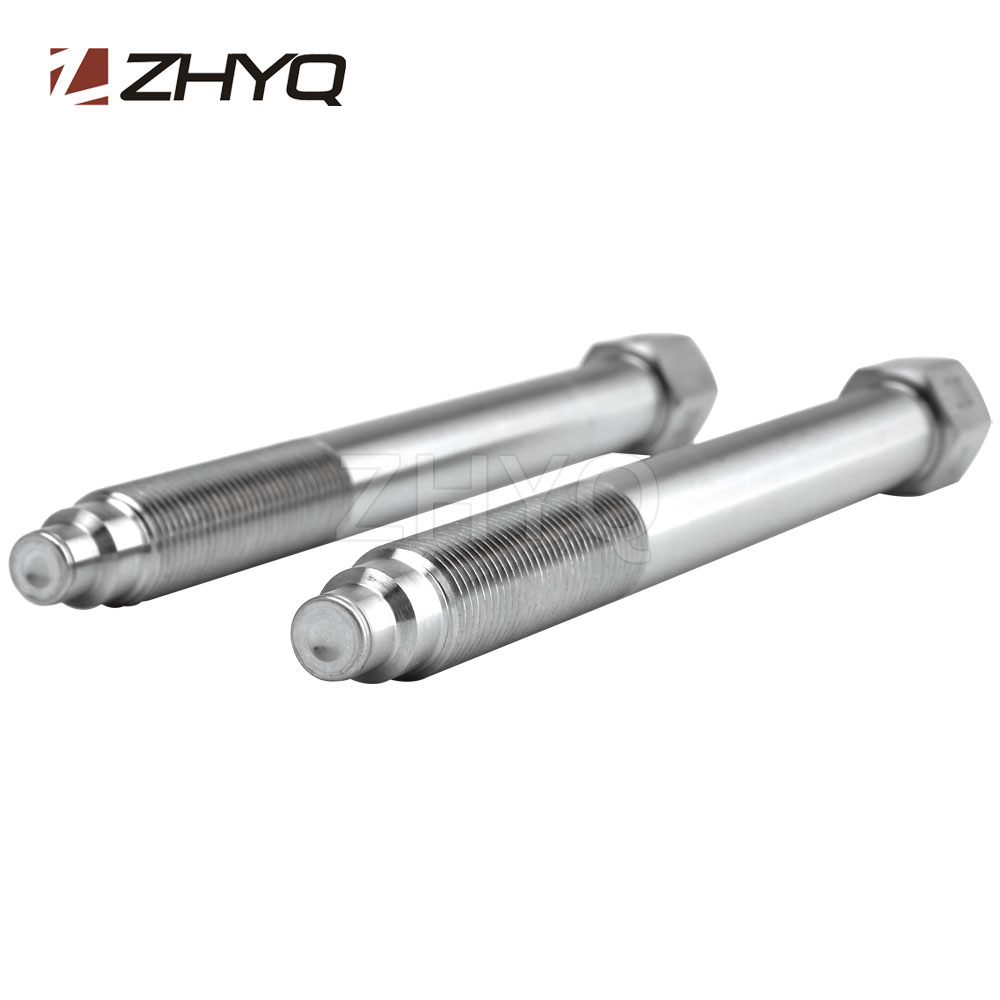

Rupture disk for plastic extruder machine
Model:BP1010
Description:
The rupture disks designed for extrusion applications of reliable emergency relief of excess pressure since they instantaneously rupture at a specific predetermined pressure range.
Send inquiry Download PDF- Standard burst pressure range
- Simple, intrinsically safe design
- Protection over wide pressure range
- Accuracy of +/-5%
- Up to 400℃ (750℉) melt temperatures
- Chemical Fribre equipment
- Plastic & rubber process machine
- Other melt fluid process control
| Ranges | 3500psi, 5500psi, 7500psi, 9500psi |
| Combined error | ±5%FS |
| Diaphragm temperature | 400℃（750℉） Maximum |
| Stem length | 1.81″, 3″,6″, 9″ |
| Process connection | 1/2″-20UNF, M18×1.5, G3/4 or customized |
