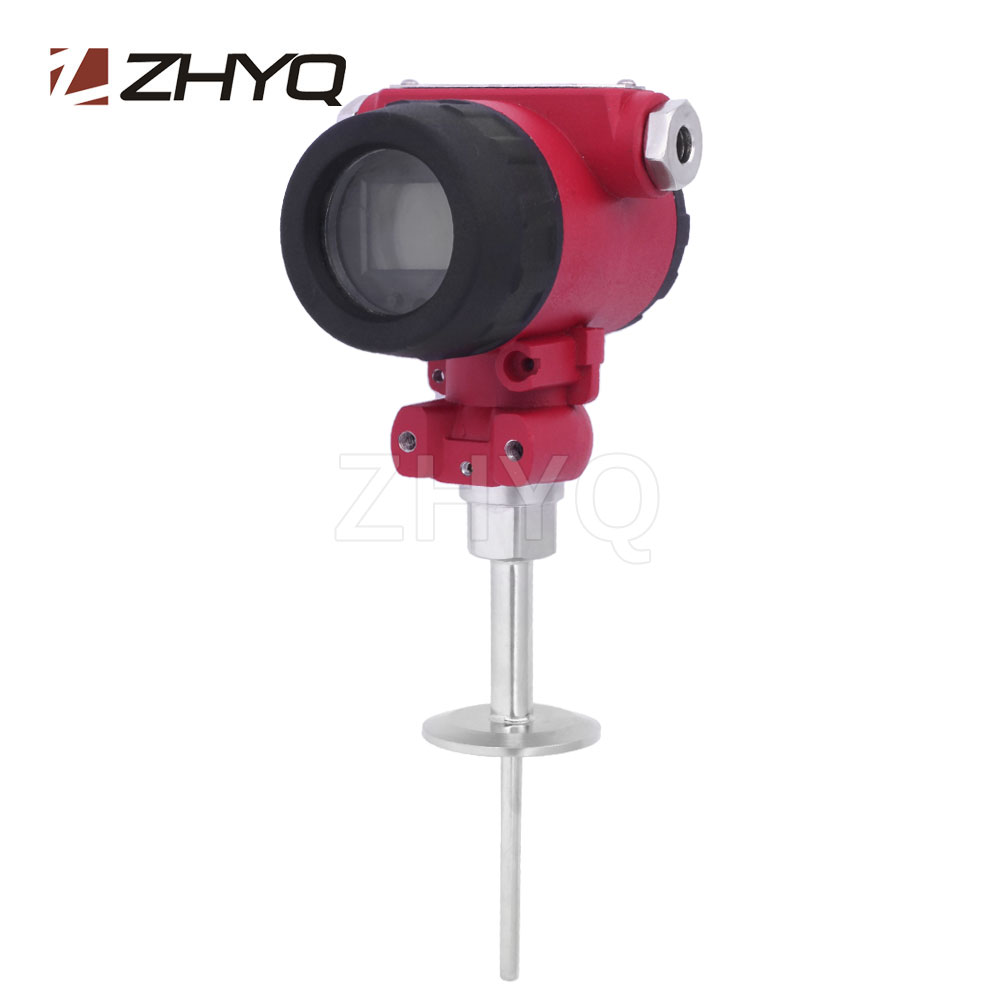

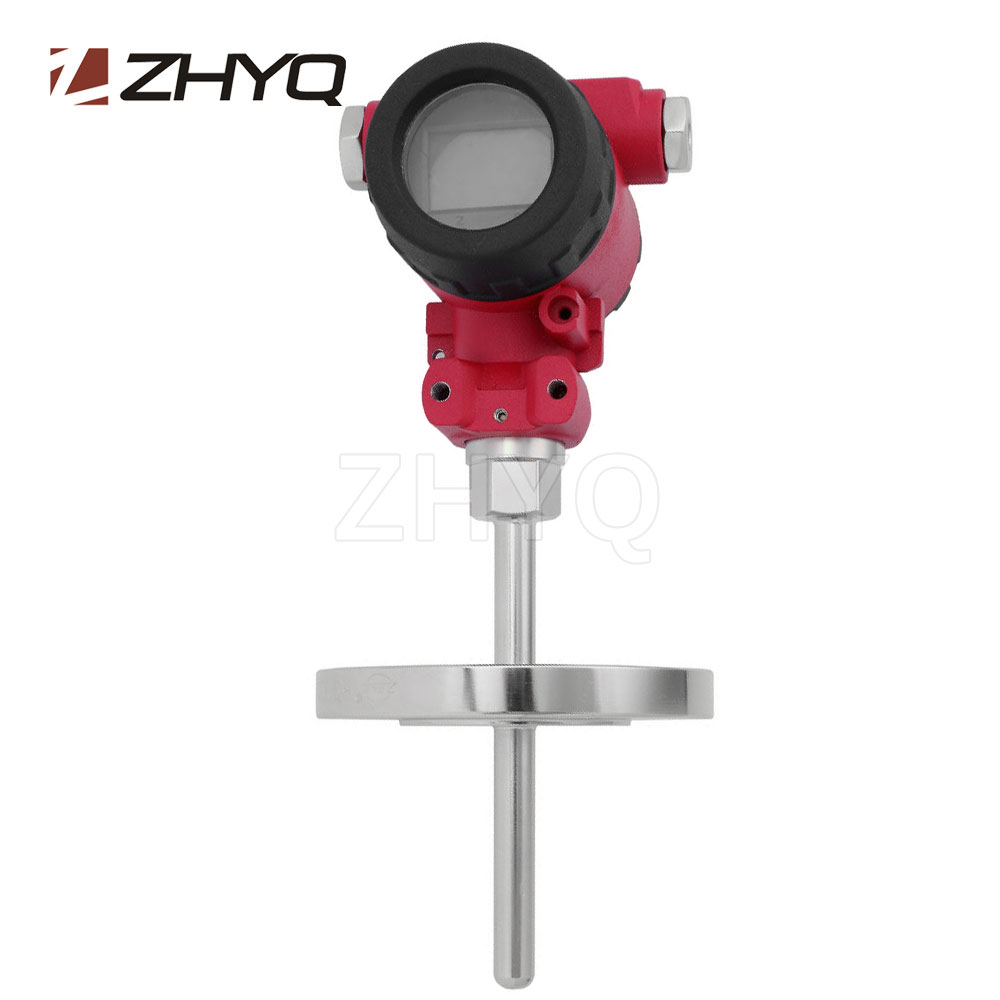

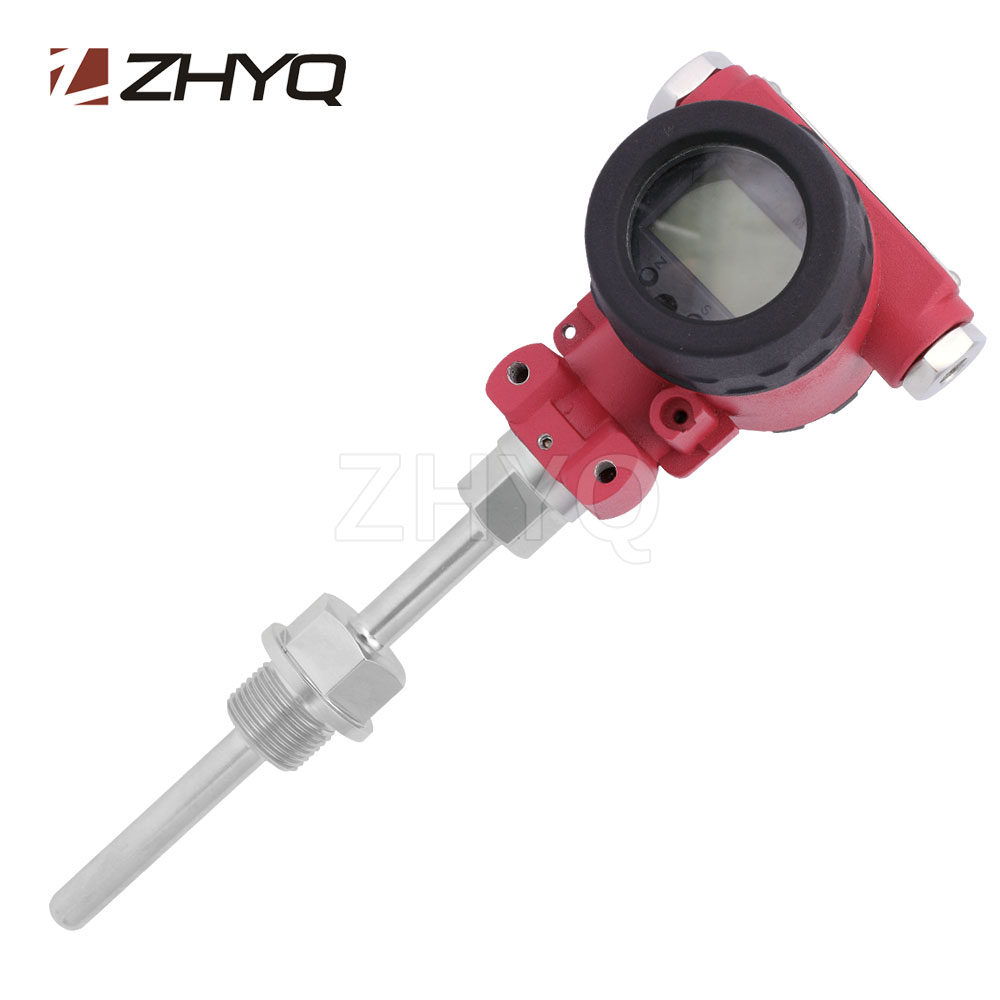

Intelligent integrated temperature transmitter

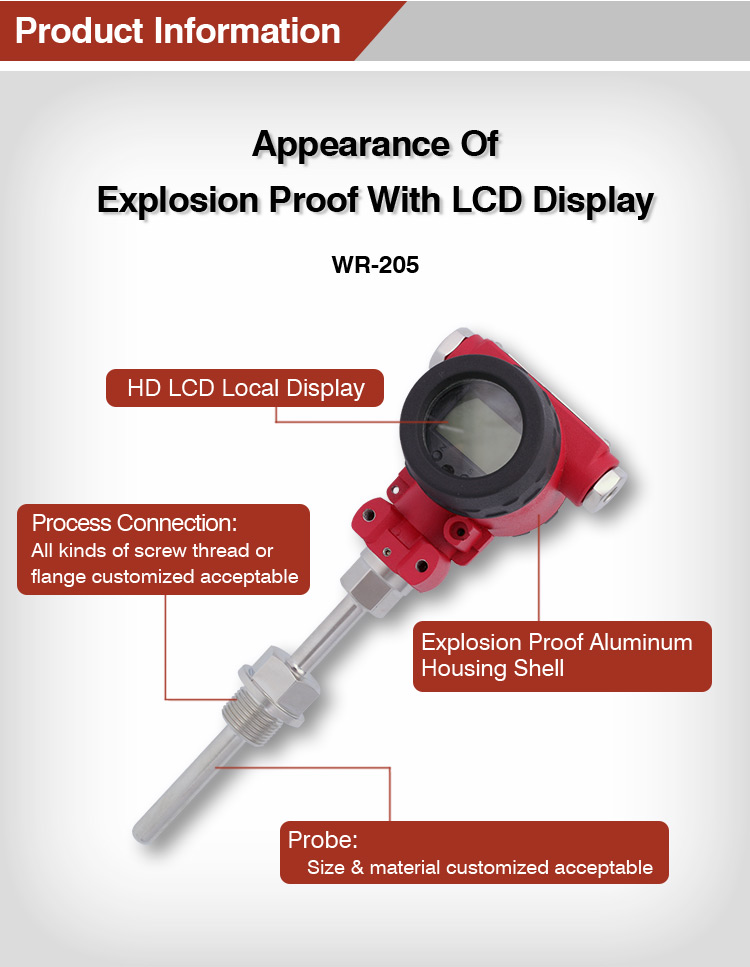

Model:WR-205
Description:

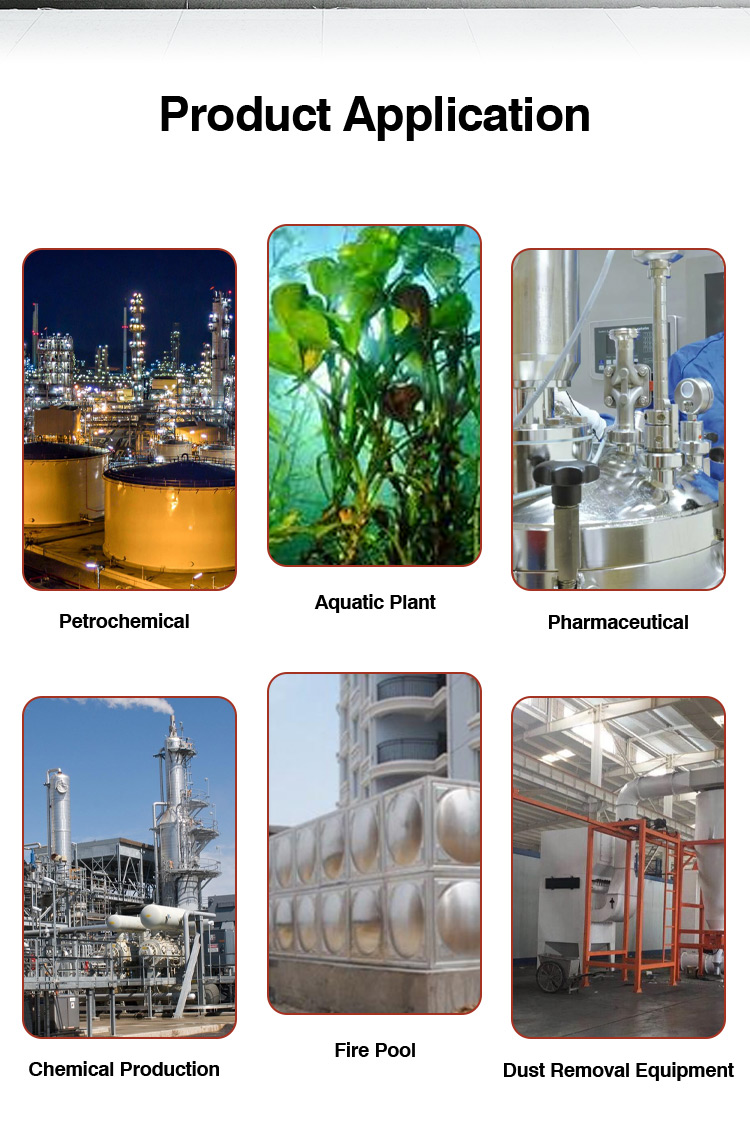

The integrated temperature transmitter designed with PT100, N, K, J and other temperature sensing components, it is widely used in chemical automatic control systems
Send inquiry Download PDF

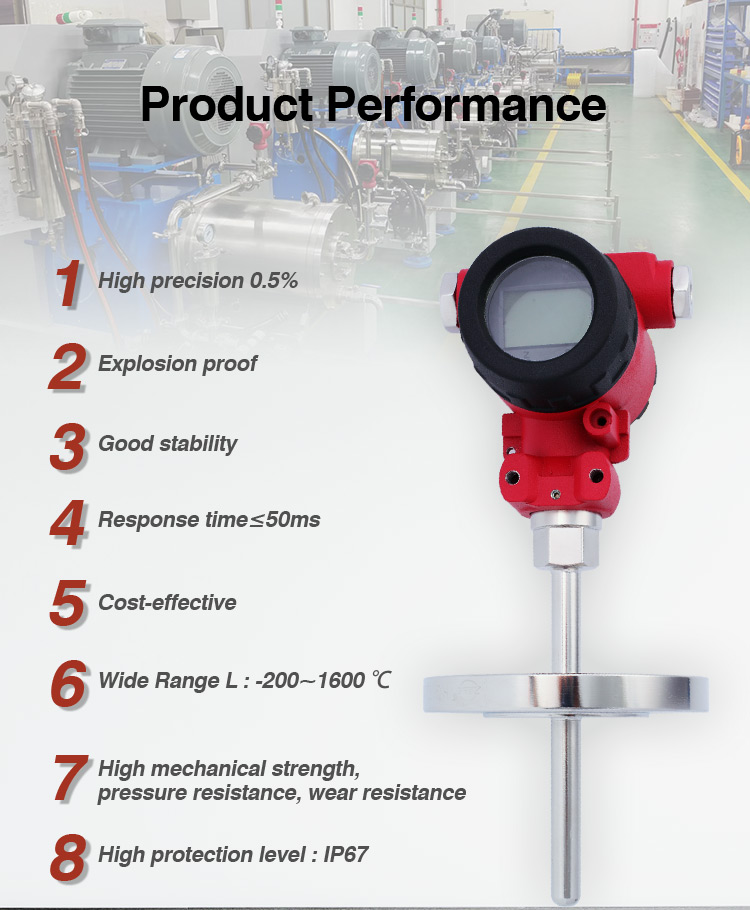

- Easy assembly and easy replacement
- Good shakeproof and high precision
- Wide measuring range (-200 ° C ~ 1600 ° C)
- Fast thermal response time and long service life
- High mechanical strength and good pressure resistance
- Suitable for explosion proof required area
- In chemical plant, there are various flammable and explosive chemical gases around the production site. It’s unsafe and easy to cause environmental gas explosion if use common thermocouples, it needs to use flameproof thermocouple as temperature measurement instrument in these cases.

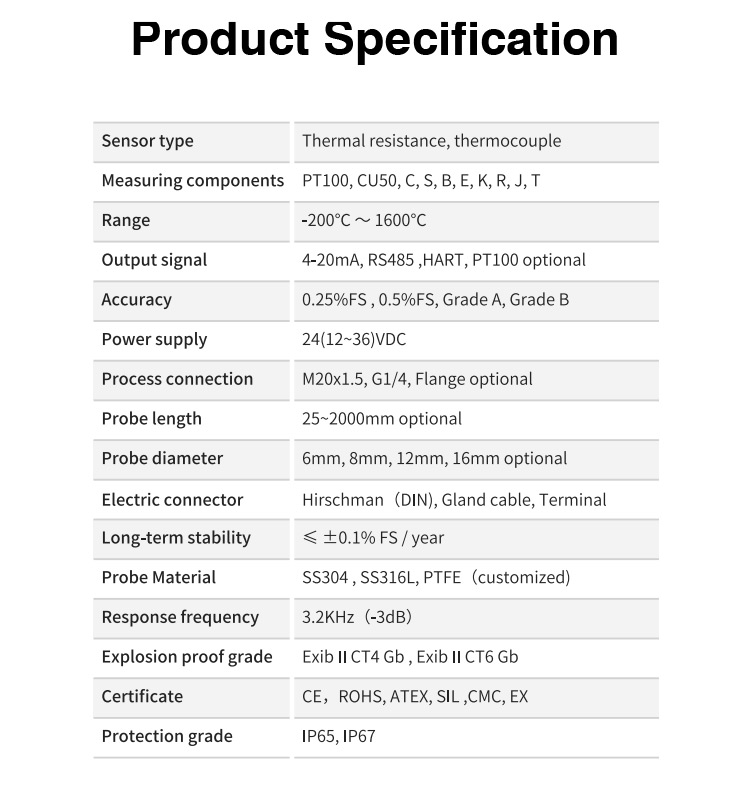

| Temperature Sensing element: | N,R,K,E,J,T,PT100,CU50 |
| Temperature range: | -200℃~0℃~1600℃ |

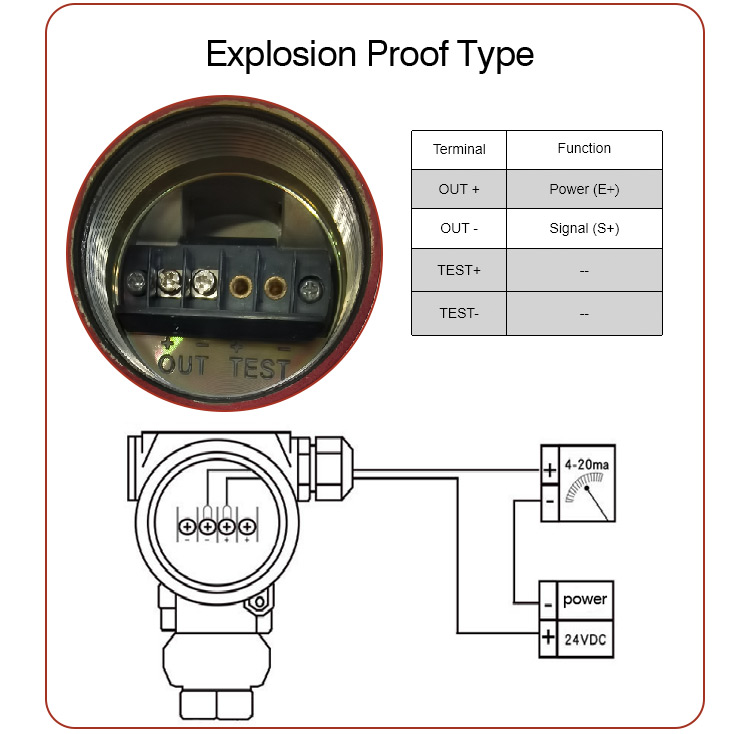

| Output: | mV/V , 4-20mA, HART optional |

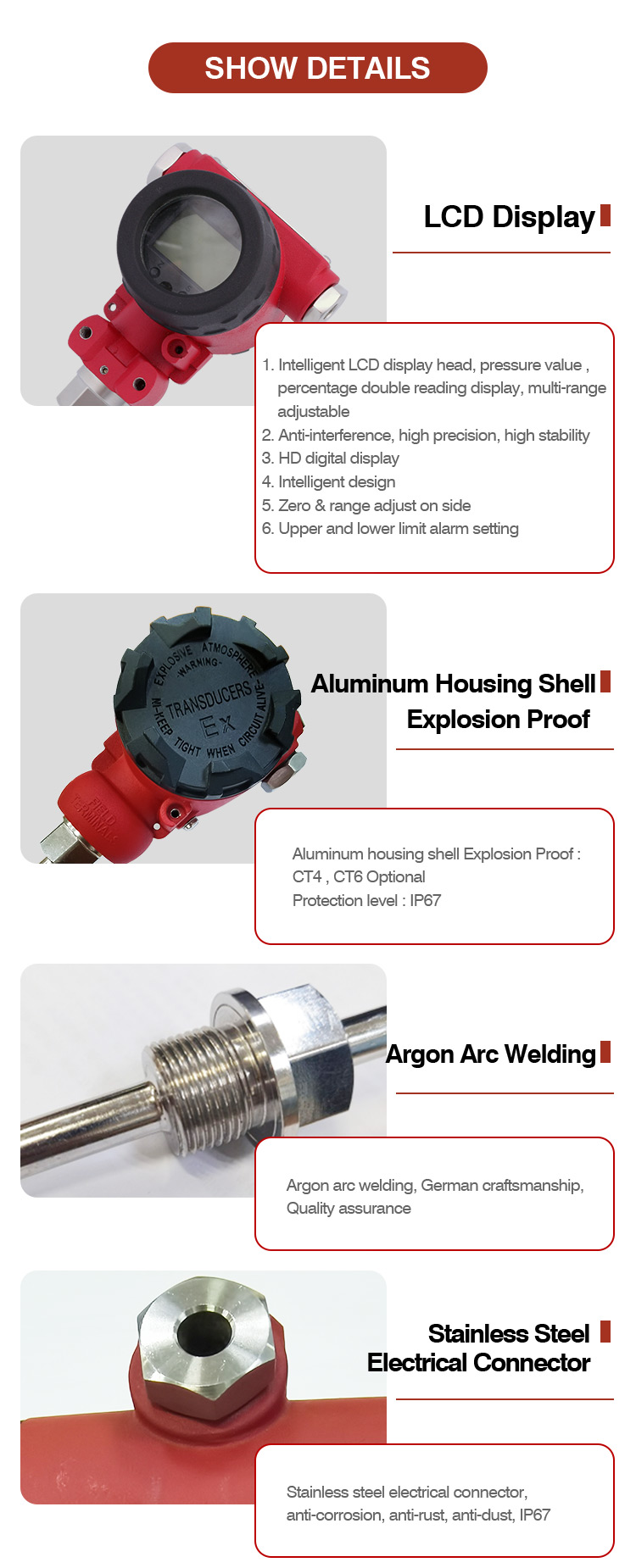

| Local display: | LCD optional |
| Power supply: | 10VDC (mV/V) , 24VDC (4-20mA /HART) |
| Accuracy class: | Class A: +/- (0.15+0.2%t); Class B: +/- (0.3+0.5%t) |
| Electrical connector: | waterproof, explosion-proof |

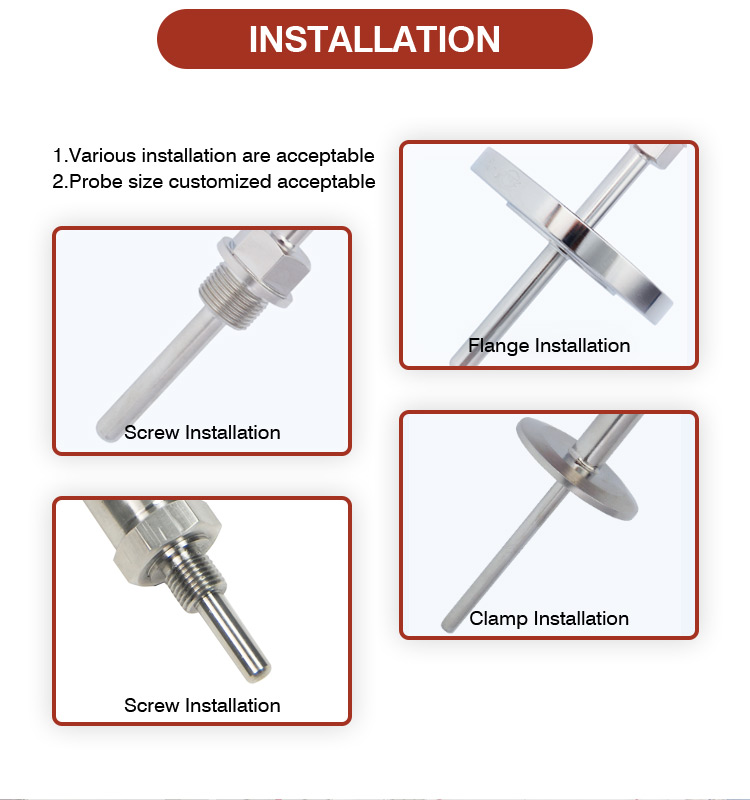

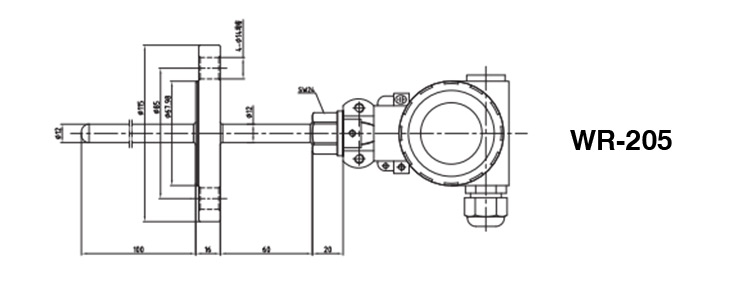

| Process connection: | M20*1.5, G1/2 , G1/4 ,flange, customized |
| Insert tube diameter (D): | 6mm ,8mm ,12mm ,customized |
| Insert tube length (L): | 8mm<L<800mm |

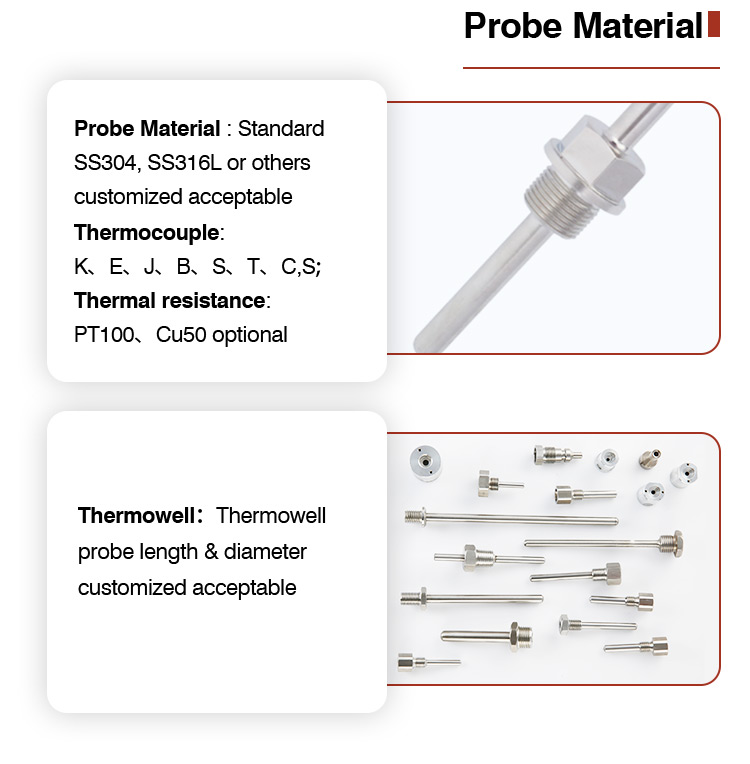

| Insert tube material | SS304 ,SS316L optional |
