Product

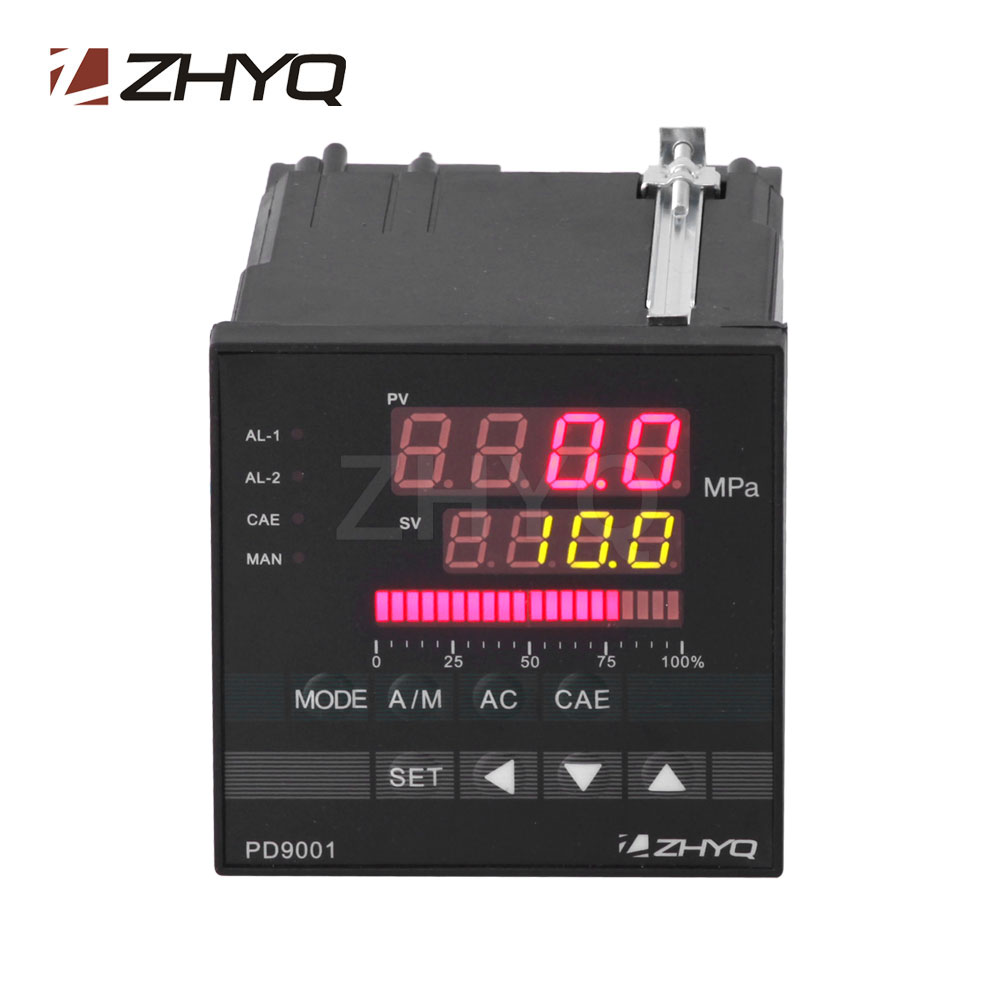

PID intelligent pressure controller
Model:PD9001
Description:
The PID intelligent pressure controller integrate a number of international advanced electronic & Single-chip computer technology, It comes with beautiful shape, complete functions & excellent anti-interference performance to ensure the stability and reliability of the system.
Send inquiry Download PDF- PID adjustable control
- Single-chip computer technology
- Exchangeable for other brand
It is widely used in the process of industrial automation control for pressure measurement and control.
| Digital Display | Double layer double color four digital display (green and red) |
| Electronic bar display | 20 segments electronical bar indicate the output power |
| Range | 000～9999 (radix point alterable) |
| Accuracy | 0.2%FS±1 |
| Pressure range | programmable setting |
| Sampling frequency | 50times/s |
| Alarm output | two circuits with programmable alarm Settings |
| Input | 2mV/V、3.3mV/V、0～10mA、0～20mA、4～20mA
0～5V、1～5V、0～10V ( order stated ) |
| PID output | 0～5V、0～10V、4～20mA ( order stated ) |
| Working power supply | 85～265VAC, 50～60Hz |
| Controller size | 96×96mm, Hole size : 92×92mm |
